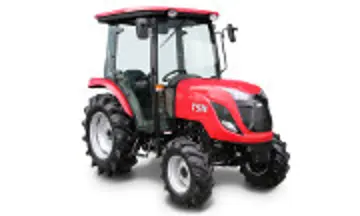

TYM T574
The TYM T574 is a tractor produced by Tym. It is equipped with a 139.5 ci 2.3 L engine. The listed engine power is Diesel (gross): 55 hp / 41.0 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 4034 to 4299 pounds.
Engine Power
Diesel (gross): 55 hp / 41.0 kW
Fuel & Capacities
17 gal
64.3 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
4034 to 4299 pounds
Overview
![]() | 2019 -
Compact Utility tractor |
|---|---|
2019 - | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | TYM |
Compact Utility tractor | |
TYM T574 Engine | |
|---|---|
Kukje 2.3L 4-cyl diesel | |
Fuel tank | 17 gal
64.3 L |
Engine details ... | |
TYM T574 Power | |
|---|---|
Engine (gross) | 55 hp
41.0 kW |
Mechanical | |
|---|---|
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 |
Rear valves | 2 |
Pump flow | 7.7 gpm
29.1 lpm |
Total flow | 11.9 gpm
45.0 lpm |
Steering flow | 4.3 gpm
16.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 3822 lbs
1733 kg |
Rear lift (at 24"/610mm) | 3051 lbs
1383 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Weight | 4034 to 4299 pounds |
Front tire | 9.5-16 |
Rear tire | 13.6-26 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 70 |
Battery volts | 12 |

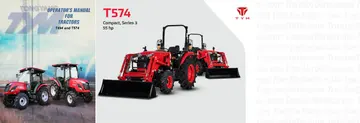

References | |
|---|---|
![]() | |
Operator's Manual for Tractor T494 and T574 HST | |
T574 Compact, Series 3 published in 2024, by TYM |
Engine
Engine Detail — 139.5 ci / 2.3 L Diesel
Manufacturer | Kukje A2300T3 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 139.5 ci
2.3 L |
Bore/Stroke | 3.465x3.701 inches
88 x 94 mm |
Power (gross) | 55 hp
41.0 kW |
Air cleaner | dry |
Rated RPM | 2600 |
Torque | 108 lb-ft
146.4 Nm |
Torque RPM | 1550 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 6.8 qts
6.4 L |
Coolant capacity | 6.9 qts
6.5 L |
Transmission
Transmission options | |
|---|---|
8-speed shuttle | |
hydrostatic |
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Oil capacity | 37 qts
35.0 L |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
TYM T574 Tires | |
|---|---|
Standard tires (ag) | Front: 9.5-16. Rear: 13.6-26 |
Lawn/turf front | 27x10.50-15 |
Lawn/turf rear | 44x18.00-20 |
Industrial front | 12-16.5 |
Industrial rear | 17.5L-24 |
Dimensions | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Length | 133.8 inches
339 cm |
Width | 63.8 inches
162 cm |
Height (ROPS) | 102.1 inches
259 cm |
Height (cab) | 99.6 inches
252 cm |
ROPS Weight | 4034 lbs
1829 kg |
Cab Weight | 4299 lbs
1950 kg |
Ground clearance | 13.8 inches
35 cm |
Attachments
Attachment overview | |
|---|---|
Front-end loader | |
Backhoe |
TYM BY85 Backhoe | |
|---|---|
Backhoe type | TYM BY85 Backhoe |
Transport height | 91.2 inches
231 cm |
Bucket width | 9 inches
22 cm |
12 inches
30 cm | |
16 inches
40 cm | |
18 inches
45 cm | |
24 inches
60 cm | |
36 inches
91 cm | |
Digging depth | 103.2 inches
262 cm |
Reach from pivot | 134.4 inches
341 cm |
Loading height | 92.4 inches
234 cm |
Bucket Rotation | 151° |
Swing Arc | 180° |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Tym T574 based on its 55 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T574.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (17 gal / 64.4 L).
Estimated 75% Load Fuel Burn~2.9 gal/hr (10.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Tym T574 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T574.
Converted Equivalents:
Horsepower (HP)55 hp
Kilowatts (kW)41 kW
Metric Horsepower (PS / CV)55.8 PS
Direct Competitor Comparison
Compare TYM T574 against same-era industry alternatives in the same horsepower class.
Current Model
Tym
TYM T574
Engine Power:Diesel (gross): 55 hp / 41.0 kW
★ Baseline Reference
