TYM T580

The TYM T580 is a tractor produced by Tym. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (net): 55 hp / 41.0 kW; Diesel (gross): 58 hp / 43.3 kW. Transmission: 16 forward and reverse. Operating weight: 5315 lbs (ROPS) 2410 kg.

Overview

	2004 - 2006 Utility tractor

Production
Manufacturer	TYM
Utility tractor

TYM T580 Engine
John Deere 2.9L 3-cyl diesel
Engine details ...

TYM T580 Transmission
16-speed sync shuttle
Transmission details ...

TYM T580 Power
Engine (gross)	58 hp 43.3 kW
Engine (net)	55 hp 41.0 kW
PTO (claimed)	51 hp 38.0 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Two-post foldable ROPS. Cab optional.

Capacity
Fuel	17 gal 64.3 L
Hydraulic system	11 gal 41.6 L

Hydraulics
Type	dual gear pump
Capacity	11 gal 41.6 L
Rear valves	3
Front valves	1
Pump flow	10.12 gpm 38.3 lpm
Total flow	15.06 gpm 57.0 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at ends)	4,241 lbs 1923 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/750
	540/1000 (optional)

Dimensions & Tires
Wheelbase	83 inches 210 cm
Weight	5315 to 5600 pounds
Front tire	11.2-20
Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Battery volts	12

Engine

Engine Detail — 179 ci / 2.9 L Diesel

Manufacturer	John Deere CD3029D
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	179 ci 2.9 L
Bore/Stroke	4.19x4.33 inches 106 x 110 mm
Power (net)	55 hp 41.0 kW
Power (gross)	58 hp 43.3 kW
Fuel system	direct injection
Compression	17.8:1
Rated RPM	2400
Firing order	1-2-3
Starter volts	12
Oil capacity	7.4 qts 7.0 L
Coolant capacity	9.5 qts 9.0 L

Transmission

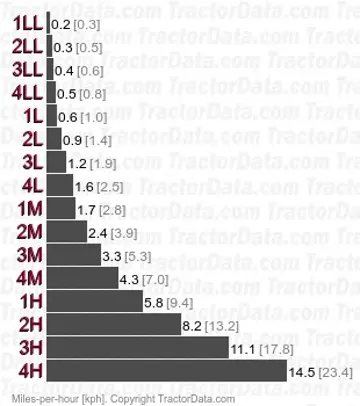

Transmission — 16 forward and reverse sync shuttle

Type	sync shuttle
Gears	16 forward and reverse
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range.

Dimensions

TYM T580 Tires
Ag front	11.2-20
Ag rear	14.9-28

Dimensions
Wheelbase	83 inches 210 cm
Length	157 inches 398 cm
Width	71.4 inches 181 cm
Height (ROPS)	98.6 inches 250 cm
Weight	5315 lbs (ROPS) 2410 kg
	5600 lbs (Cab) 2540 kg
Ground clearance	13.2 inches 33 cm

Photos

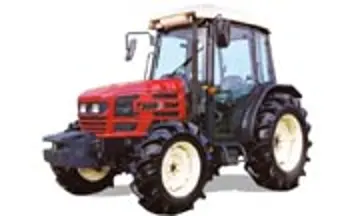

TYM T580 tractor photo
