Tytan 754
The Tytan 754 is a tractor produced by Tytan. The rated power output is 75 hp 55.9 kW. Transmission: 12 forward and 4 reverse. Operating weight: 7650 to 10830 pounds.
Engine Power
75 hp
55.9 kW
Fuel & Capacities
12 gal
45.4 L
Transmission
12 forward and 4 reverse
Operating Weight
7650 to 10830 pounds
Tytan 754 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | Farm/Agricultural tractor | Farm/Agricultural tractor |
|---|
Production | |
|---|---|
Manufacturer | Tytan |
Farm/Agricultural tractor | |
Built in Shandong, China | |
Tytan 754 Engine | |
|---|---|
4-cyl diesel | |
Fuel tank | 12 gal
45.4 L |
Engine details ...  | |
Tytan 754 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Tytan 754 Power | |
|---|---|
Engine | 75 hp
55.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power |
Hydraulic disc brakes | |
Cab optional | |
Hydraulics | |
|---|---|
Valves | 6 |
Total flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | 2 |
Rear lift | 3,450 lbs
1564 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 7650 to 10830 pounds |
Front tire | 11.2x24 |
Rear tire | 16.9x28 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Diesel
Manufacturer | 4105 |
Fuel Type | Diesel |
Configuration | 4-cylinder |
Power | 75 hp
55.9 kW |
Air cleaner | oil bath |
Rated RPM | 2300 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
 | |
Dimensions
Tytan 754 Tires | |
|---|---|
Ag front | 11.2x24 |
Ag rear | 16.9x28 |
Dimensions | |
|---|---|
Length | 142 inches
360 cm |
Width | 68 inches (min)
172 cm |
78 inches (max)
198 cm | |
Height | 105 inches (ROPS)
266 cm |
Ground clearance | 14.6 inches
37 cm |
Tytan 754 Weight | |
|---|---|
7,650 lbs
3470 kg | |
9,650 lbs (with loader)
4377 kg | |
10,830 lbs (with loader/backhoe)
4912 kg | |
Photos

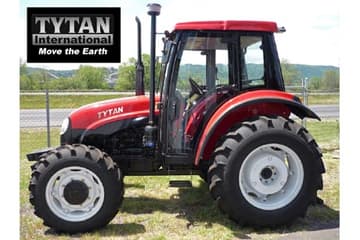

Tytan 754
