UTB/Universal 340

The UTB/Universal 340 is a tractor produced by Utb Universal. It is equipped with a 109.7 ci 1.8 L engine. The listed engine power is Diesel (listed): 34 hp / 25.4 kW. Transmission: 9 forward and 3 reverse. Operating weight: 3508 to 4144 pounds.

Overview

	1987 - 1991 Utility tractor

Production
Manufacturer	UTB/Universal
Utility tractor
Built in Brasov, Romania

Variants
340DTC	4WD

UTB/Universal 340 Engine
UTB 1.8L 2-cyl diesel
Fuel tank	14.3 gal 54.1 L
Engine details ...

UTB/Universal 340 Transmission
9-speed gear
Transmission details ...

UTB/Universal 340 Power
Engine	34 hp 25.4 kW
PTO (claimed)	30 hp 22.4 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Open operator station.

Hydraulics
Type	open center

Tractor hitch
Rear Type	II/I
Rear lift	2650 lbs 1202 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540 (1.375)
Engine RPM	540@1967

Dimensions & Tires
2WD Wheelbase	71.1 inches 180 cm
4WD Wheelbase	68.1 inches 172 cm
Weight	3508 to 4144 pounds
Front tire	6.00-16
2WD Rear tire	14.9-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
U-300 U-340 published by Universal
Loaders published in 1987, by Universal

Engine

Engine Detail — 109.7 ci / 1.8 L Diesel

Manufacturer	UTB
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	109.7 ci 1.8 L
Bore/Stroke	4.02x4.33 inches 102 x 110 mm
Power	34 hp 25.4 kW
Rated RPM	2400
Starter volts	12

Transmission

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Clutch	dry disc
Three gears, plus reverse, in three ranges.

Dimensions

UTB/Universal 340 Tires
2WD Standard tires (ag)	Front: 6.00-16. Rear: 14.9-28
4WD Standard tires (ag)	Front: 7.50-20. Rear: 14.9-28

Dimensions
2WD Wheelbase	71.1 inches 180 cm
4WD Wheelbase	68.1 inches 172 cm
2WD Length	110.4 inches 280 cm
4WD Length	119.3 inches 303 cm
2WD Height (steering wheel)	58.7 inches 149 cm
4WD Height (steering wheel)	59.8 inches 151 cm
2WD Weight	3508 lbs 1591 kg
4WD Weight	4144 lbs 1879 kg
2WD Ground clearance	18.3 inches 46 cm
4WD Ground clearance	11 inches 27 cm

Photos

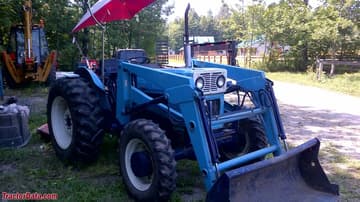

UTB/Universal 340

UTB/Universal 340

UTB/Universal 340
