UTB/Universal 523

The UTB/Universal 523 is a tractor produced by Utb Universal. It is equipped with a 172.1 ci 2.8 L engine. The listed engine power is Diesel (listed): 52 hp / 38.8 kW. Transmission: shuttle.

Overview

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania

UTB/Universal 523 Engine
UTB 2.8L 3-cyl diesel
Engine details ...

UTB/Universal 523 Power
Engine	52 hp 38.8 kW

Mechanical
Four-wheel drive

Hydraulics
Pump flow	8.98 gpm 34.0 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540, 1000

Dimensions & Tires
Front tire	7.50-20
Rear tire	14.9R28
Full dimensions and tires ...

Engine

Engine Detail — 172.1 ci / 2.8 L Diesel

Manufacturer	UTB
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	172.1 ci 2.8 L
Power	52 hp 38.8 kW
Rated RPM	2400
Starter volts	12

Transmission

Transmission options
12-speed
8-speed

Transmission — 12 forward and 3 reverse

Gears

12 forward and 3 reverse

Transmission — shuttle

Transmission	shuttle
Gears	8 forward and reverse

Dimensions

UTB/Universal 523 Tires
Ag front	7.50-20
Ag rear	14.9R28

Dimensions

Photos

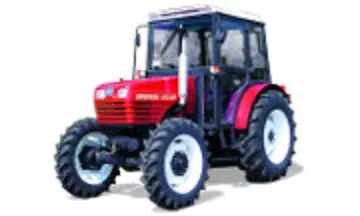

UTB/Universal 523 tractor photo
