UTB/Universal 453

The UTB/Universal 453 is a tractor produced by Utb Universal. It is equipped with a 142.8 ci 2.3 L engine. The listed engine power is Diesel (listed): 45 hp / 33.6 kW. Transmission: 12 forward and 3 reverse. Operating weight: 5765 to 6393 pounds.

Overview

	1988 - 2004 3 SeriesUtility tractor 3 Series Utility tractor

Production
Manufacturer	UTB/Universal
Utility tractor
Built in Brasov, Romania
Original price	$20,000 (2004)

Variants
453DT	4WD

UTB/Universal 453 Engine
UTB 2.3L 3-cyl diesel
Fuel tank	16.4 gal 62.1 L
Engine details ...

UTB/Universal 453 Power
Engine	45 hp 33.6 kW
PTO (claimed)	40 hp 29.8 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Dry band brakes
Two-post ROPS. Cab optional.

Hydraulics
Type	open center
Valves	1
Pump flow	9.7 gpm 36.7 lpm

Tractor hitch
Rear Type	II/I
Rear lift	3740 lbs 1696 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540
Engine RPM	540@2160

Dimensions & Tires
Wheelbase	83.4 inches 211 cm
Weight	5765 to 6393 pounds
Front tire	6.00-16
2WD Rear tire	13.6R-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12
Battery AH	150

References
3 Series Tractors published by Universal*
3 Series Tractors published by Universal
*Publication contains known errors.

Engine

Engine Detail — 142.8 ci / 2.3 L Diesel

Manufacturer	UTB D115
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	142.8 ci 2.3 L
Bore/Stroke	3.74x4.331 inches 95 x 110 mm
Power	45 hp 33.6 kW
Fuel system	direct injection
Air cleaner	oil bath
Compression	17:1
Rated RPM	2400
Torque	107.7 lb-ft 146.0 Nm
Torque RPM	1500
Starter volts	12
Oil capacity	7.2 qts 6.8 L
Coolant capacity	13.7 qts 13.0 L

Transmission

Transmission options
8-speed constant mesh
12-speed creeper

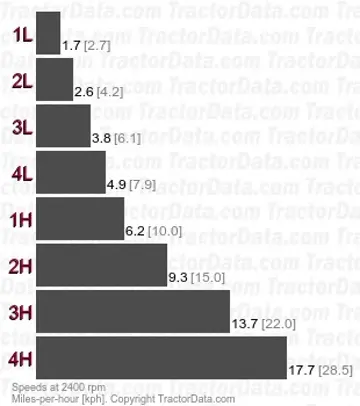

Transmission — 8 forward and 2 reverse constant mesh

Type	constant mesh
Gears	8 forward and 2 reverse
Clutch	dry disc
Oil capacity	24.3 qts 23.0 L
Four gears (1-4) plus reverse (R) in two ranges (low and high).
With 14.9-28 rear tires.

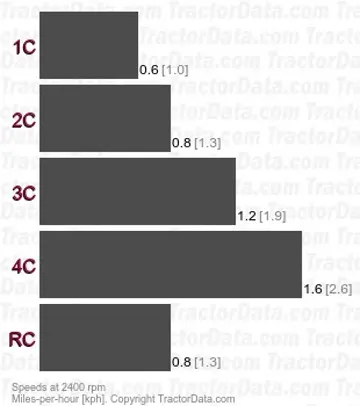

Transmission — 12 forward and 3 reverse creeper

Type	creeper
Gears	12 forward and 3 reverse
Clutch	dry disc
Optional creeper adds a third range to the basic transmission.
With 14.9-28 rear tires.

Dimensions

UTB/Universal 453 Tires
2WD Standard tires (ag)	Front: 6.00-16. Rear: 13.6R-28
4WD Standard tires (ag)	Front: 7.50-20. Rear: 13.6R-28

Dimensions
Wheelbase	83.4 inches 211 cm
Length	143.3 inches 363 cm
Height	97.6 inches 247 cm
2WD Weight	5765 lbs 2615 kg
4WD Weight	6393 lbs 2899 kg
2WD Front tread	55.1 to 78.7 inches 139 to 199 cm
4WD Front tread	55.5 to 59.4 inches 140 to 150 cm
Rear tread	55.5 to 75.2 inches 140 to 191 cm

Photos

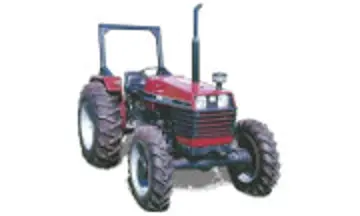

UTB/Universal 453 tractor photo
