UTB/Universal 445

The UTB/Universal 445 is a tractor produced by Utb Universal. It is equipped with a 142.8 ci 2.3 L engine. The listed engine power is Diesel (listed): 45 hp / 33.6 kW. Transmission: 9 forward and 3 reverse. Drive type: 4x2 2WD. Operating weight: 4500 lbs 2041 kg.

Overview

	1972 - 1981

Production
Manufacturer	UTB/Universal
Built in Brasov, Romania
Original price was $18,000 in 1981

Variants
U-445	2WD
V-445	vineyard
L-445	high crop
445DT	MFWD
445DTE	4WD
S445	crawler

UTB/Universal 445 Engine
UTB 2.3L 3-cyl diesel
Fuel tank	14 gal 53.0 L
Engine details ...

UTB/Universal 445 Power
Engine	45 hp 33.6 kW
Drawbar (claimed)	27 hp 20.1 kW
PTO (claimed)	42 hp 31.3 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (445DT)
Open operator station.

Hydraulics
Type	open center
Valves	1
Pump flow	5.8 gpm 22.0 lpm

Tractor hitch
Rear Type	II/I
Rear lift	3740 lbs 1696 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Wheelbase	75.6 inches 192 cm
Weight	4500 lbs 2041 kg
Front tire	7.50-16
Rear tire	16.9-28
Full dimensions and tires ...

References
Loaders published in 1987, by Universal

Engine

Engine Detail — 142.8 ci / 2.3 L Diesel

Manufacturer	UTB D-115
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	142.8 ci 2.3 L
Bore/Stroke	3.74x4.331 inches 95 x 110 mm
Power	45 hp 33.6 kW
Fuel system	direct injection
Rated RPM	2400
Torque	96.2 lb-ft 130.4 Nm
Torque RPM	1500
Firing order	1-2-3
Starter volts	12

Transmission

Transmission options
6-speed sliding gear
9-speed constant mesh

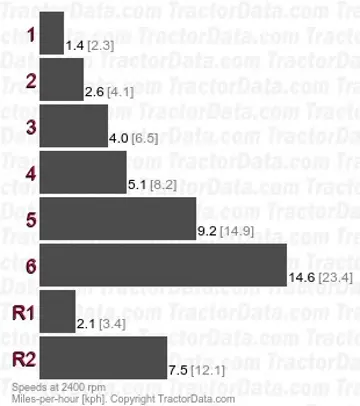

Transmission — 6 forward and 2 reverse sliding gear

Type	sliding gear
Gears	6 forward and 2 reverse
With 12.4-28 rear tires.

Transmission — 9 forward and 3 reverse constant mesh

Type	constant mesh
Gears	9 forward and 3 reverse

Dimensions

UTB/Universal 445 Tires
Ag front	7.50-16
Ag rear	16.9-28

Dimensions
Wheelbase	75.6 inches 192 cm
Length	120.9 inches 307 cm
Height (steering wheel)	58.7 inches 149 cm
Height (hood)	53 inches 134 cm
Weight	4500 lbs 2041 kg
Clearance (front axle)	18.3 inches 46 cm

Photos

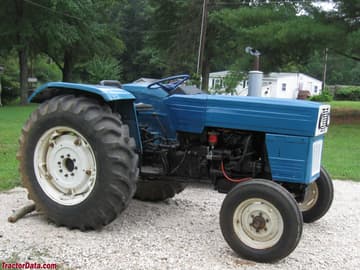

UTB/Universal 445
