Valmet 700

The Valmet 700 is a tractor produced by Valmet. It is equipped with a 201 ci 3.3 L engine. The rated power output is 70 hp 52.2 kW. Transmission: 12 forward and 8 reverse. Operating weight: 7077 to 7584 pounds.

Overview

	1997 - 2002 100 SeriesUtility tractor
1997 - 2002
100 Series
Utility tractor

Production
Manufacturer	Valmet
Utility tractor
Original price was $31,000 in 2002

Valmet 700 Engine
Sisu 3.3L 3-cyl diesel
Fuel tank	19.3 gal 73.1 L
Engine details ...

Valmet 700 Power
Engine	70 hp 52.2 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard with heater. Air-conditioning optional.

Hydraulics
Valves	2
Pump flow	10.6 gpm 40.1 lpm
	13.7 gpmOptOptional 51.9 lpm

Tractor hitch
Rear lift	6,173 lbs 2800 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540/540E
Front PTO Type	1000

Dimensions & Tires
2WD Wheelbase	83.2 inches 211 cm
4WD Wheelbase	88.8 inches 225 cm
Weight	7077 to 7584 pounds
Front tire	10.00-16
2WD Rear tire	16.9R34
Full dimensions and tires ...

References
600 - 700 - 800 - 900 published in 1998, by Valmet
600 - 700 - 800 - 900 published in 2002, by Valtra

Engine

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer	Sisu 320 DSRE
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	201 ci 3.3 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Power	70 hp 52.2 kW
Rated RPM	2270
Torque	214 lb-ft 290.2 Nm
Torque RPM	1400

Transmission

Transmission options
8-speed synchromesh
16-speed splitter
12-speed creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Four gears in two ranges, plus reverse range.
With 16.9R34 rear tires.

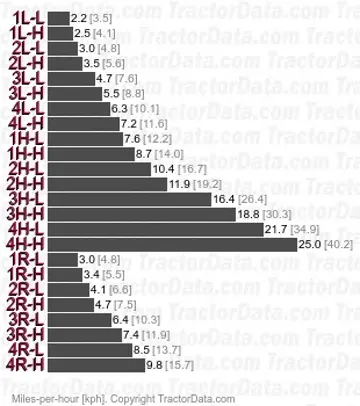

Transmission — 16 forward and 8 reverse splitter

Type	splitter
Gears	16 forward and 8 reverse
With 16.9R34 rear tires.
Transmission
Type	creeper
Gears	12 forward and 8 reverse

Dimensions

Valmet 700 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 16.9R34
4WD Standard tires (ag)	Front: 12.4R24. Rear: 16.9R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 16.9R30
4WD Optional tires (ag)	Front: 13.4-24. Rear: 16.9-34
4WD Optional tires (ag)	Front: 420/70R24. Rear: 520/70R34
4WD Optional tires (ag)	Front: 380/70R24. Rear: 480/70R34
4WD Optional tires (ag)	Front: 13.6R24. Rear: 13.6R38
4WD Optional tires (ag)	Front: 12.4R28. Rear: 14.9R38
4WD Optional tires (ag)	Front: 12.4R28. Rear: 14.9R38
4WD Optional tires (ag)	Front: 13.6R24. Rear: 16.9R34

Dimensions
2WD Wheelbase	83.2 inches 211 cm
4WD Wheelbase	88.8 inches 225 cm
2WD Length	147.4 inches 374 cm
4WD Length	152 inches 386 cm
Width	84.2 inches 213 cm
Height (cab)	104.7 inches 265 cm
2WD Weight	7077 lbs 3210 kg
4WD Weight	7584 lbs 3440 kg
2WD Clearance (front axle)	19.9 inches 50 cm
4WD Clearance (front axle)	16.8 inches 42 cm
2WD Clearance (rear axle)	18.1 inches 45 cm
4WD Clearance (rear axle)	17.7 inches 44 cm

Photos

Valmet 700
