Valmet 800

The Valmet 800 is a tractor produced by Valmet. It is equipped with a 268 ci 4.4 L engine. The rated power output is 80 hp 59.7 kW. Transmission: 12 forward and 8 reverse. Operating weight: 7408 to 7915 pounds.

Overview

	1997 - 2001 100 SeriesUtility tractor
1997 - 2001
100 Series
Utility tractor

Production
Manufacturer	Valmet
Utility tractor
Original price was $34,000 in 2001

Valmet 800 Engine
Sisu 4.4L 4-cyl diesel
Fuel tank	19.3 gal 73.1 L
Engine details ...

Valmet 800 Power
Engine	80 hp 59.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Cab standard with heater. Air-conditioning optional.

Hydraulics
Valves	2
Pump flow	13.7 gpm 51.9 lpm

Tractor hitch
Rear lift	7,275 lbs 3299 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540/540E
Front PTO Type	1000

Dimensions & Tires
2WD Wheelbase	88.4 inches 224 cm
4WD Wheelbase	94 inches 238 cm
Weight	7408 to 7915 pounds
Front tire	11.00-16
2WD Rear tire	18.4R34
Full dimensions and tires ...

References
600 - 700 - 800 - 900 published in 1998, by Valmet
600 - 700 - 800 - 900 published in 2002, by Valtra

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Sisu 420 DSRE
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	268 ci 4.4 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Power	80 hp 59.7 kW
Rated RPM	2270
Torque	232 lb-ft 314.6 Nm
Torque RPM	1400

Transmission

Transmission options
8-speed synchromesh
16-speed splitter
12-speed creeper

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Four gears in two ranges, plus reverse range.
With 16.9R34 rear tires.

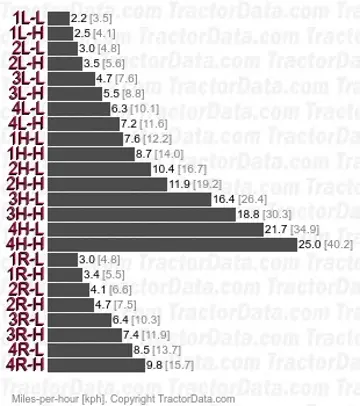

Transmission — 16 forward and 8 reverse splitter

Type	splitter
Gears	16 forward and 8 reverse
With 16.9R34 rear tires.
Transmission
Type	creeper
Gears	12 forward and 8 reverse

Dimensions

Valmet 800 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4R34
4WD Standard tires (ag)	Front: 14.9R24. Rear: 18.4R34
2WD Optional tires (ag)	Front: 10.00-16. Rear: 16.9R30
4WD Optional tires (ag)	Front: 13.4-24. Rear: 16.9-34
4WD Optional tires (ag)	Front: 420/70R24. Rear: 520/70R34
4WD Optional tires (ag)	Front: 380/70R24. Rear: 480/70R34
4WD Optional tires (ag)	Front: 13.6R24. Rear: 13.6R38
4WD Optional tires (ag)	Front: 12.4R28. Rear: 14.9R38
4WD Optional tires (ag)	Front: 12.4R28. Rear: 14.9R38
4WD Optional tires (ag)	Front: 13.6R24. Rear: 16.9R34

Dimensions
2WD Wheelbase	88.4 inches 224 cm
4WD Wheelbase	94 inches 238 cm
2WD Length	152.6 inches 387 cm
4WD Length	159.2 inches 404 cm
Width	85.7 inches 217 cm
2WD Height (cab)	106.1 inches 269 cm
4WD Height (cab)	106.3 inches 270 cm
2WD Weight	7408 lbs 3360 kg
4WD Weight	7915 lbs 3590 kg
2WD Clearance (front axle)	19.9 inches 50 cm
4WD Clearance (front axle)	18.6 inches 47 cm
Clearance (rear axle)	19.5 inches 49 cm
