Valmet 905
The Valmet 905 is a tractor produced by Valmet. It is equipped with a 402.8 ci 6.6 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 16 forward and 8 reverse. Operating weight: 9766 lbs 4429 kg.
Engine Power
105 hp
78.3 kW
Fuel & Capacities
47.55 gal
180.0 L
Transmission
16 forward and 8 reverse
Operating Weight
9766 lbs
4429 kg
Valmet 905 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1984 - 1991
05 SeriesRow-Crop tractor |
|---|---|
1984 - 1991 | |
05 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Valmet |
Row-Crop tractor | |
Valmet 905 Engine | |
|---|---|
Valmet 6.6L 6-cyl diesel | |
Fuel tank | 47.55 gal
180.0 L |
Engine details ...  | |
Valmet 905 Power | |
|---|---|
Engine | 105 hp
78.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard. Optional air-conditioning. | |
Hydraulics | |
|---|---|
Pressure | 2611 psi
180.0 bar |
Pump flow | 12.7 gpm
48.1 lpm |
Tractor hitch | |
|---|---|
Rear lift | 12590 lbs
5710 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 100.8 inches
256 cm |
Weight | 9766 lbs
4429 kg |
Front tire | 14.9-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 65 |
Battery volts | 12 |
Battery AH | 150 |
References | |
|---|---|
 | |
505 605 705 805 905 published in 1984, by Valmet | |
International Success published by Valmet | |
Why not buy the best? published in 1985, by Valmet |
Engine
Engine Detail — 402.8 ci / 6.6 L Diesel
Manufacturer | Valmet D66D9 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 402.8 ci
6.6 L |
Bore/Stroke | 4.252x4.724 inches
108 x 120 mm |
Power | 105 hp
78.3 kW |
Fuel system | direct injection |
Pre-heating | intake air heater |
Compression | 17:1 |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Transmission
Transmission options | |
|---|---|
8-speed synchromesh | |
16-speed two-speed power shift |
Transmission — 8 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 8 forward and 4 reverse |
Clutch | 330mm dry disc |
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range. | |
With 16.9R38 rear tires. | |
 | |

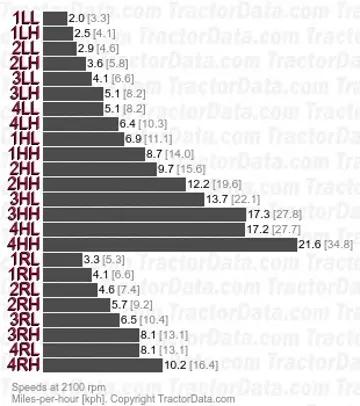

Transmission — 16 forward and 8 reverse two-speed power shift
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
A push-button two-speed powershift added to the basic transmission. | |
With 16.9R38 rear tires. | |
 | |
Dimensions
Valmet 905 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 100.8 inches
256 cm |
Length | 200.8 inches
510 cm |
Width | 84.3 inches
214 cm |
Height | 106.5 inches
270 cm |
Weight | 9766 lbs
4429 kg |
Ground clearance | 18.7 inches
47 cm |
Photos
Valmet 905 tractor photo
