Versatile 756

The Versatile 756 is a tractor produced by Versatile. It is equipped with a 505 ci 8.3 L engine. The listed engine power is Diesel (listed): 190 hp / 141.7 kW. Transmission: 12 forward and 4 reverse. Operating weight: 21,000 lbs 9525 kg.

Overview

	1986 6 SeriesFour-wheel Drive (4WD) tractor 6 Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Original price was $52,000 in 1986

Versatile 756 Engine
Cummins 8.3L 6-cyl diesel
Fuel tank	246 gal 931.1 L
Engine details ...

Versatile 756 Power
Engine	190 hp 141.7 kW
Drawbar (claimed)	150 hp 111.9 kW
PTO (claimed)	168 hp 125.3 kW

Mechanical
Four-wheel drive
Articulated power steering
Cab standard

Hydraulics
Type	closed center
Valves	2
Pump flow	25 gpm 94.6 lpm

Tractor hitch
Rear Type	III
Rear lift	10,385 lbs 4710 kg

Dimensions & Tires
Wheelbase	130 inches 330 cm
Weight	21,000 lbs 9525 kg
Front tire	18.4-38
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative

Engine

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer	Cummins
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	505 ci 8.3 L
Bore/Stroke	4.49x5.32 inches 114 x 135 mm
Power	190 hp 141.7 kW
Starter type	electric

Transmission

Transmission options
15-speed
12-speed

Transmission — 15 forward and 5 reverse

Gears

15 forward and 5 reverse

Transmission — 12 forward and 4 reverse

Gears

12 forward and 4 reverse

Dimensions

Versatile 756 Tires
Ag front	18.4-38
Ag rear	18.4-38

Dimensions
Wheelbase	130 inches 330 cm
Weight	21,000 lbs 9525 kg

Photos

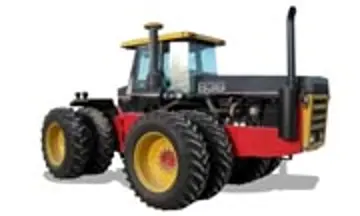

Versatile 756
