Versatile 295
The Versatile 295 is a tractor produced by Versatile. It is equipped with a 543 ci 8.9 L engine. The listed engine power is Diesel (listed): 290 hp / 216.3 kW. Transmission: 16 forward and 4 reverse. Operating weight: 23945 lbs 10861 kg.
Engine Power
Diesel (listed): 290 hp / 216.3 kW
Fuel & Capacities
170 gal
643.5 L
Transmission
16 forward and 4 reverse
Operating Weight
23945 lbs
10861 kg
Overview
 | 2018 -
Row-Crop tractor |
|---|---|
2018 - | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Versatile (a part of Rostselmash) |
Row-Crop tractor | |
Built in Winnipeg, Manitoba, Canada | |
Versatile 295 Engine | |
|---|---|
Cummins 8.9L 6-cyl diesel | |
Fuel tank | 170 gal
643.5 L |
Engine details ...  | |
Versatile 295 Transmission | |
|---|---|
16-speed power shift | |
Transmission details ...  |
Versatile 295 Power | |
|---|---|
Engine | 290 hp
216.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | closed-center load sensing |
Pressure | 2900 psi
200.0 bar |
Valves | 4 to 6 |
Pump flow | 55 gpm
208.2 lpm |
75 gpm*With optional Hi-Flow system.
283.9 lpm | |
Tractor hitch | |
|---|---|
Rear Type | III/IIIN |
Rear lift | 18850 lbs
8550 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 1000 |
540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 124.6 inches
316 cm |
Weight | 23945 lbs
10861 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
Charging volts | 12 |
Batteries | 2 |
Battery volts | 12 |
Engine
Engine Detail — 543 ci / 8.9 L Diesel
Manufacturer | Cummins QSL9 |
Configuration | turbocharged aftercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 543 ci
8.9 L |
Bore/Stroke | 4.49x5.69 inches
114 x 145 mm |
Emissions | Tier IV |
Power | 290 hp
216.3 kW |
Maximum Power | 623 hp
464.6 kW |
Torque | 985 lb-ft
1335.7 Nm |
Torque RPM | 1500 |
Starter type | electric |
Transmission
Transmission — 16 forward and 4 reverse power shift
Type | power shift |
Gears | 16 forward and 4 reverse |
Dimensions
Versatile 295 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 124.6 inches
316 cm |
Length | 252 inches
640 cm |
Height (cab) | 134.7 inches
342 cm |
Weight | 23945 lbs
10861 kg |
Max weight | 30685 lbs
13918 kg |
Rear axle | 4.3 inch diameter
109 mm |
Rear tread | 60 to 88 inches
152 to 223 cm |
Rear tread | 60 to 132 inches
152 to 335 cm |
Photos

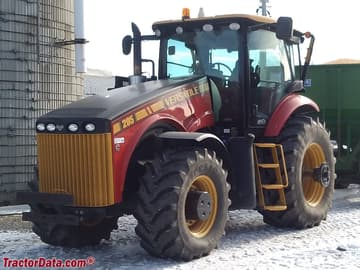

Versatile 295, left side.
Versatile 295, right side.
Versatile 295 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Versatile 295.
Converted Equivalents:
Horsepower (HP)290 hp
Kilowatts (kW)216.3 kW
Metric Horsepower (PS / CV)294 PS
