Wagner TR-14

The Wagner TR-14 is a tractor produced by Wagner. It is equipped with a 672 ci 11.0 L engine. The rated power output is 175 hp 130.5 kW. Transmission: Fuller R-96. Operating weight: 17800 lbs 8074 kg.

Overview

	1955 - 1959 TR SeriesFour-wheel Drive (4WD) tractor
1955 - 1959
TR Series
Four-wheel Drive (4WD) tractor

Production
Manufacturer	Wagner
Four-wheel Drive (4WD) tractor
Built in Portland, Oregon

Variants
TR-14	ag tractor
TRS-14	scraper/dozer tractor

Wagner TR-14 Engine
Cummins 11.0L 6-cyl diesel
Engine details ...

Wagner TR-14 Transmission
10-speed
Transmission details ...

Wagner TR-14 Power
Engine	175 hp 130.5 kW

Mechanical
Four-wheel drive
Final drives	planetary
Articulated power steering
Hydraulic shoe brakes
Open operator station. Cab optional.

Capacity
Fuel	95 gal 359.6 L
Hydraulic system	30 gal 113.6 L

Hydraulics
Capacity	30 gal 113.6 L

Dimensions & Tires
Wheelbase	130 inches 330 cm
Weight	17800 lbs 8074 kg
Front tire	18.00x26
Rear tire	18.00x26
Full dimensions and tires ...

Engine

Engine Detail — 672 ci / 11.0 L Diesel

Manufacturer	Cummins HBI-600
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled vertical L-head
Displacement	672 ci 11.0 L
Bore/Stroke	4.875x6.00 inches 124 x 152 mm
Power	175 hp 130.5 kW
Air cleaner	oil bath
Rated RPM	2100
Torque	490 lb-ft 664.4 Nm
Torque RPM	1600
Starter volts	24

Transmission

Transmission — Fuller R-96

Transmission	Fuller R-96
Gears	10 forward and 2 reverse
Clutch	dry disc

Dimensions

Wagner TR-14 Tires
Ag front	18.00x26
Ag rear	18.00x26

Dimensions
Wheelbase	130 inches 330 cm
Length	237 inches 601 cm
Width	102 inches 259 cm
Height	90 inches 228 cm
Height (cab)	114 inches 289 cm
Weight	17800 lbs 8074 kg
Ground clearance	32 inches 81 cm
Front tread	79 inches 200 cm
Rear tread	79 inches 200 cm

Photos

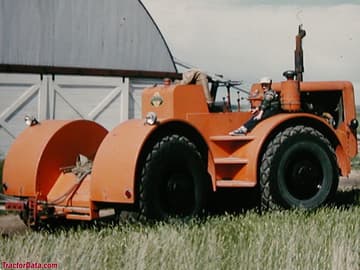

Wagner TR-14
