Wagner WA-9
The Wagner WA-9 is a tractor produced by Wagner. It is equipped with a 464 ci 7.6 L engine. The listed engine power is Diesel (listed): 160 hp / 119.3 kW. Transmission: Fuller R-96. Operating weight: 18100 lbs 8210 kg.
Engine Power
Diesel (listed): 160 hp / 119.3 kW
Fuel & Capacities
95 gal
359.6 L
Transmission
Fuller R-96
Operating Weight
18100 lbs
8210 kg
Overview
 | 1961 - 1969
WA SeriesFour-wheel Drive (4WD) tractor
WA Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Wagner |
Four-wheel Drive (4WD) tractor | |
Built in Portland, Oregon, USA | |
Wagner WA-9 Engine | |
|---|---|
Cummins 7.6L 6-cyl diesel | |
Engine details ...  |
Wagner WA-9 Transmission | |
|---|---|
10-speed | |
Transmission details ...  |
Wagner WA-9 Power | |
|---|---|
Engine | 160 hp
119.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Steering | hydraulic power |
Hydraulic brakes | |
Open operator station. Cab optional. | |
Capacity | |
|---|---|
Fuel | 95 gal
359.6 L |
Hydraulic system | 51 gal
193.0 L |
Hydraulics | |
|---|---|
Capacity | 51 gal
193.0 L |
Pump flow | 67 gpm
253.6 lpm |
Dimensions & Tires | |
|---|---|
Wheelbase | 122 inches
309 cm |
Weight | 18100 lbs
8210 kg |
Front tire | 15-26 |
Rear tire | 15-26 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 464 ci / 7.6 L Diesel
Manufacturer | Cummins C-160 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 464 ci
7.6 L |
Bore/Stroke | 4.4375x5.00 inches
113 x 127 mm |
Power | 160 hp
119.3 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 24 |
Coolant capacity | 54 qts
51.1 L |
Transmission

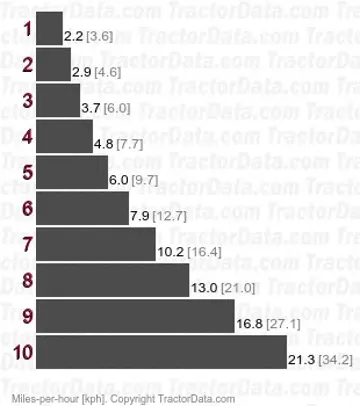

Transmission — Fuller R-96
Transmission | Fuller R-96 |
Gears | 10 forward and 2 reverse |
 | |
Dimensions
Wagner WA-9 Tires | |
|---|---|
Standard tires (ag) | Front: 15-26. Rear: 15-26 |
Dimensions | |
|---|---|
Wheelbase | 122 inches
309 cm |
Length | 222 inches
563 cm |
Width | 94 inches
238 cm |
Height | 88 inches
223 cm |
Height (cab) | 112 inches
284 cm |
Weight | 18100 lbs
8210 kg |
Ground clearance | 16 inches
40 cm |
Photos

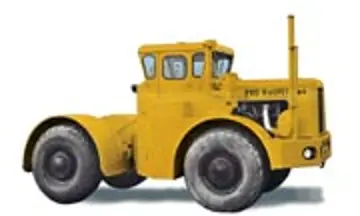

Wagner WA-9 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Wagner WA-9 based on its 160 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Wagner WA-9.
Estimated Continuous Field Runtime: 11.4 hrs
Approximately 11.4 hours of continuous field operation at ~75% rated power on a full tank (95 gal / 359.6 L).
Estimated 75% Load Fuel Burn~8.3 gal/hr (31.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Wagner WA-9 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Wagner WA-9.
Converted Equivalents:
Horsepower (HP)160 hp
Kilowatts (kW)119.3 kW
Metric Horsepower (PS / CV)162.2 PS
Direct Competitor Comparison
Compare Wagner WA-9 against same-era industry alternatives in the same horsepower class.
Current Model
Wagner
Wagner WA-9
Engine Power:Diesel (listed): 160 hp / 119.3 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 1086
Engine Power:144.4
Production Years:1976 - 1981
