Wagner WA-17
The Wagner WA-17 is a tractor produced by Wagner. It is equipped with a 855 ci 14.0 L engine. The listed engine power is Diesel (listed): 250 hp / 186.4 kW. Transmission: Fuller 10-G-1220. Operating weight: 27000 lbs 12247 kg.
Engine Power
Diesel (listed): 250 hp / 186.4 kW
Fuel & Capacities
150 gal
567.8 L
Transmission
Fuller 10-G-1220
Operating Weight
27000 lbs
12247 kg
Overview
 | 1961 - 1969
WA SeriesFour-wheel Drive (4WD) tractor
WA Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Wagner |
Four-wheel Drive (4WD) tractor | |
Built in Portland, Oregon, USA | |
Wagner WA-17 Engine | |
|---|---|
Cummins 14.0L 6-cyl diesel | |
Engine details ...  |
Wagner WA-17 Transmission | |
|---|---|
10-speed | |
Transmission details ...  |
Wagner WA-17 Power | |
|---|---|
Engine | 250 hp
186.4 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Steering | hydraulic power |
Pneumatic brakes | |
Open operator station. Cab optional. | |
Capacity | |
|---|---|
Fuel | 150 gal
567.8 L |
Hydraulic system | 80 gal
302.8 L |
Steering | 20 qts
18.9 L |
Hydraulics | |
|---|---|
Capacity | 80 gal
302.8 L |
Pump flow | 43 gpm
162.8 lpm |
Steering flow | 33 gpm
124.9 lpm |
Steering cap. | 20 qts
18.9 L |
Dimensions & Tires | |
|---|---|
Wheelbase | 136 inches
345 cm |
Weight | 27000 lbs
12247 kg |
Front tire | 26.5x25 |
Rear tire | 26.5x25 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 855 ci / 14.0 L Diesel
Manufacturer | Cummins NH-250 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 855 ci
14.0 L |
Bore/Stroke | 5.50x6.00 inches
140 x 152 mm |
Power | 250 hp
186.4 kW |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 24 |
Coolant capacity | 64 qts
60.6 L |
Transmission
Transmission — Fuller 10-G-1220
Transmission | Fuller 10-G-1220 |
Gears | 10 forward and 2 reverse |
 | |
Dimensions
Wagner WA-17 Tires | |
|---|---|
Standard tires (ag) | Front: 26.5x25. Rear: 26.5x25 |
Dimensions | |
|---|---|
Wheelbase | 136 inches
345 cm |
Length | 246 inches
624 cm |
Width | 111 inches
281 cm |
Height | 96 inches
243 cm |
Height (cab) | 127 inches
322 cm |
Weight | 27000 lbs
12247 kg |
Ground clearance | 18 inches
45 cm |
Photos

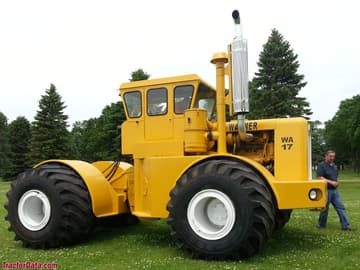

Wagner WA-17.
Wagner WA-17 with added lighting and air-conditioning.
Wagner WA-17 with added lighting and air-conditioning.
Recommended Implements & Sizing Guide
Engineering recommendations for Wagner WA-17 based on its 250 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Wagner WA-17.
Estimated Continuous Field Runtime: 11.5 hrs
Approximately 11.5 hours of continuous field operation at ~75% rated power on a full tank (150 gal / 567.8 L).
Estimated 75% Load Fuel Burn~13 gal/hr (49.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Wagner WA-17 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Wagner WA-17.
Converted Equivalents:
Horsepower (HP)250 hp
Kilowatts (kW)186.4 kW
Metric Horsepower (PS / CV)253.5 PS
