Wagner WA-4
The Wagner WA-4 is a tractor produced by Wagner. It is equipped with a 212.3 ci 3.5 L engine. The listed engine power is Diesel (listed): 102 hp / 76.1 kW. Transmission: Fuller R-46. Operating weight: 10300 lbs 4672 kg.
Engine Power
Diesel (listed): 102 hp / 76.1 kW
Fuel & Capacities
50 gal
189.2 L
Transmission
Fuller R-46
Operating Weight
10300 lbs
4672 kg
Overview
 | 1961 - 1969
WA SeriesFour-wheel Drive (4WD) tractor
WA Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Wagner |
Four-wheel Drive (4WD) tractor | |
Built in Portland, Oregon, USA | |
Wagner WA-4 Engine | |
|---|---|
General Motors 3.5L 4-cyl diesel | |
Fuel tank | 50 gal
189.2 L |
Engine details ...  | |
Wagner WA-4 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Wagner WA-4 Power | |
|---|---|
Engine | 102 hp
76.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Steering | hydraulic power |
Hydraulic brakes | |
Open operator station. Cab optional. | |
Hydraulics | |
|---|---|
Pump flow | 22 gpm
83.3 lpm |
Dimensions & Tires | |
|---|---|
Wheelbase | 90 inches
228 cm |
Weight | 10300 lbs
4672 kg |
Front tire | 16.9x26 |
Rear tire | 16.9x26 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 212.3 ci / 3.5 L Diesel
Manufacturer | General Motors 4-53 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 212.3 ci
3.5 L |
Bore/Stroke | 3.875x4.50 inches
98 x 114 mm |
Power | 102 hp
76.1 kW |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 23 qts
21.8 L |
Transmission
Transmission — Fuller R-46
Transmission | Fuller R-46 |
Gears | 8 forward and 2 reverse |
 | |
Dimensions
Wagner WA-4 Tires | |
|---|---|
Standard tires (ag) | Front: 16.9x26. Rear: 16.9x26 |
Dimensions | |
|---|---|
Wheelbase | 90 inches
228 cm |
Length | 186.25 inches
473 cm |
Width | 78.5 inches
199 cm |
Height | 85.5 inches
217 cm |
Height (cab) | 108 inches
274 cm |
Weight | 10300 lbs
4672 kg |
Ground clearance | 14 inches
35 cm |
Photos

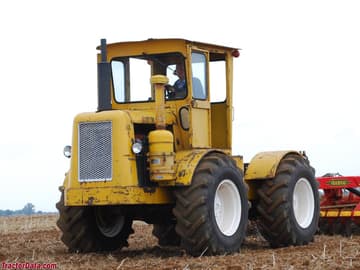

Wagner WA-4
Recommended Implements & Sizing Guide
Engineering recommendations for Wagner WA-4 based on its 102 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Wagner WA-4.
Estimated Continuous Field Runtime: 9.4 hrs
Approximately 9.4 hours of continuous field operation at ~75% rated power on a full tank (50 gal / 189.3 L).
Estimated 75% Load Fuel Burn~5.3 gal/hr (20.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Wagner WA-4 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Wagner WA-4.
Converted Equivalents:
Horsepower (HP)102 hp
Kilowatts (kW)76.1 kW
Metric Horsepower (PS / CV)103.4 PS
