White 100
The White 100 is a tractor produced by White. It is equipped with a 359 ci 5.9 L engine. The rated power output is 94.36 hp 70.4 kW. Transmission: 3x6 Over/Under. Operating weight: 12000 to 13940 pounds.
Engine Power
94.36 hp
70.4 kW
Fuel & Capacities
58 gal
219.5 L
Transmission
3x6 Over/Under
Operating Weight
12000 to 13940 pounds
White 100 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1989
100 SeriesRow-Crop tractor |
|---|---|
1987 - 1989 | |
100 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | White |
Row-Crop tractor | |
Built in Coldwater, Ohio, USA | |
Original price was $40,000 in 1989 | |
White 100 Engine | |
|---|---|
CDC-Cummins 5.9L 6-cyl diesel | |
Engine details ...  |
White 100 Transmission | |
|---|---|
18-speed partial powershift | |
Transmission details ...  |
White 100 Power | |
|---|---|
PTO (claimed) | 92 hp
68.6 kW |
Drawbar (tested) | 79.38 hp
59.2 kW |
PTO (tested) | 94.36 hp
70.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | hydraulic rear |
Power steering | |
Independent hydraulic wet disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 58 gal
219.5 L |
Hydraulic system | 23 gal
87.1 L |
Hydraulics | |
|---|---|
Type | closed center pressure compensated |
Capacity | 23 gal
87.1 L |
Pressure | 2250 psi
155.1 bar |
Valves | 2 or 3 |
Pump flow | 19 gpm
71.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | III/II |
Control | position and draft control |
Rear lift | 7190 lbs
3261 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 111.5 inches
283 cm |
4WD Wheelbase | 99 inches
251 cm |
Weight | 12000 to 13940 pounds |
Front tire | 9.5L-15 |
Rear tire | 18.4R-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 62 |
Batteries | 2 |
Battery volts | 12 |
References | |
|---|---|
 | |
1100 Series Front End Loaders published in 1987, by White | |
White 100 published in 1987 |
Engine
Engine Detail — 359 ci / 5.9 L Diesel
Manufacturer | CDC-Cummins |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled inline |
Displacement | 359 ci
5.9 L |
Bore/Stroke | 4.016x4.724 inches
102 x 120 mm |
Fuel system | direct injection |
Air cleaner | dual paper elements |
Compression | 17.0:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 17.3 qts
16.4 L |
Coolant capacity | 21 qts
19.9 L |
Transmission
Transmission — 3x6 Over/Under
Transmission | 3x6 Over/Under |
Type | partial powershift |
Gears | 18 forward and 6 reverse |
Clutch | 355.6mm dry disc |
Six forward and two reverse gears with an over and under power shift for each gear. | |
 | |
Dimensions
White 100 Tires | |
|---|---|
Ag front | 9.5L-15 |
Ag rear | 18.4R-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 111.5 inches
283 cm |
4WD Wheelbase | 99 inches
251 cm |
Length | 174 inches
441 cm |
Width | 115 inches
292 cm |
2WD Height | 117.2 inches
297 cm |
4WD Height | 118.7 inches
301 cm |
Bar rear axle | 3.375 by 96 inches
85 by 2438 mm |
Bar rear axle | 3.375 by 115 inches
85 by 2921 mm |
2WD Front tread | 60 to 84 inches
152 to 213 cm |
4WD Front tread | 59.7 to 80 inches
151 to 203 cm |
Rear tread | 60 to 106 inches
152 to 269 cm |
Rear tread | 60 to 126 inches
152 to 320 cm |
White 100 Weight | |
|---|---|
2WD Shipping | 12000 lbs
5443 kg |
4WD Shipping | 13100 lbs
5942 kg |
Operating | 13940 lbs
6323 kg |
Ballasted | 14485 lbs
6570 kg |
Tests
Nebraska Tractor Test 1614 | |
|---|---|
Diesel 18-speed 2WD
September 26 - October 4, 1988
Link: Nebraska Tractor Test 1614 file | |
PTO performance | |
Power at rated engine speed | 94.36 hp
70.4 kW |
Fuel use | 6.4 gal/hour
24.2 l/hour |
Power at rated PTO speed | 93.48 hp
69.7 kW |
Fuel use | 6.2 gal/hour
23.5 l/hour |
Drawbar performance | |
Max power | 79.38 hp
59.2 kW |
Fuel use | 6.2 gal/hour
23.5 l/hour |
Gear 4-direct used for power test. | |
Attachments
Attachment overview | |
|---|---|
White 1175 QA loader | |
White 1175 QA 70mm loader |
Photos

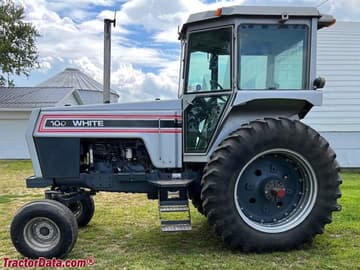

White 100 row-crop tractor.
