White 2-62 Field Boss

The White 2-62 Field Boss is a tractor produced by White. It is equipped with a 219.4 ci 3.6 L engine. The listed engine power is Diesel (listed): 64.1 hp / 47.8 kW. Transmission: 20 forward and 4 reverse. Operating weight: 5423 to 5986 pounds.

Engine Power

Diesel (listed): 64.1 hp / 47.8 kW

Fuel & Capacities

27.5 gal 104.1 L

Transmission

20 forward and 4 reverse

Operating Weight

5423 to 5986 pounds

Overview

	1980 - 1981 Utility tractorIseki built Utility tractor Iseki built

Production
Distributor	White
Manufacturer	Iseki
Utility tractor
Built in Japan
Original price was $17,500 in 1981

Variants
2-62	utility
2-62 Mudder	high-crop tractor
T6500	similar Iseki model

White 2-62 Engine
Isuzu 3.6L 4-cyl diesel
Fuel tank	27.5 gal 104.1 L
Engine details ...

White 2-62 Transmission
20-speed gear
Transmission details ...

White 2-62 Power
Engine	64.1 hp 47.8 kW

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Four-post ROPS. Cab available with heater.

Hydraulics
Type	open center
Pump flow	11.5 gpm 43.5 lpm
Steering flow	8 gpm 30.3 lpm

Tractor hitch
Rear Type	II
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540 (1.375)
Engine RPM	540@1814
	850@2200

Dimensions & Tires
Wheelbase	84.7 inches 215 cm
Weight	5423 to 5986 pounds
Front tire	7.50-16
2WD Rear tire	16.9/14-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	30
Batteries	2
Battery volts	12
Battery AH	80

References

2-45/2-62 Tractors published in 1980, by White
New 2-45 & 2-62 Field Boss Tractors published in 1980, by White

Engine

Engine Detail — 219.4 ci / 3.6 L Diesel

Manufacturer	Isuzu 4BB1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	219.4 ci 3.6 L
Bore/Stroke	4.016x4.331 inches 102 x 110 mm
Power	64.1 hp 47.8 kW
Air cleaner	dry with pre-cleaner
Compression	17.5:1
Rated RPM	2200
Starter volts	12
Coolant capacity	5 qts 4.7 L

Transmission

Transmission — 20 forward and 4 reverse gear

Type	gear
Gears	20 forward and 4 reverse
Clutch	275mm dry disc
Five gears (1-5), plus reverse (R), in two ranges with additional creeper range.

Dimensions

White 2-62 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 16.9/14-30
4WD Standard tires (ag)	Front: 9.5-24. Rear: 16.9/14-30

Dimensions
Wheelbase	84.7 inches 215 cm
Length	142.1 inches 360 cm
Width	72.4 inches 183 cm
Height	96.9 inches 246 cm
2WD Weight	5423 lbs 2459 kg
4WD Weight	5986 lbs 2715 kg
2WD Ground clearance	15.4 inches 39 cm
4WD Ground clearance	14.8 inches 37 cm
2WD Front tread	52 to 75.6 inches 132 to 192 cm
4WD Front tread	59.1 inches 150 cm
Rear tread	55.5 to 79.5 inches 140 to 201 cm

Photos

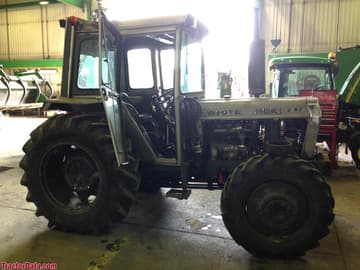

White 2-62 Field Boss

Recommended Implements & Sizing Guide

Engineering recommendations for White 2-62 Field Boss based on its 64.1 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for White 2-62 Field Boss.

Estimated Continuous Field Runtime: 8.3 hrs

Approximately 8.3 hours of continuous field operation at ~75% rated power on a full tank (27.5 gal / 104.1 L).

Estimated 75% Load Fuel Burn~3.3 gal/hr (12.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
