White 2-60
The White 2-60 is a tractor produced by White. It is equipped with a 210.6 ci 3.5 L engine. The listed engine power is 63.22 hp 47.1 kW. Transmission: 12 forward and 2 reverse. Operating weight: 4530 to 5250 pounds.
Engine Power
63.22 hp
47.1 kW
Fuel & Capacities
14.4 gal
54.5 L
Transmission
12 forward and 2 reverse
Operating Weight
4530 to 5250 pounds
Overview
 | 1976 - 1980
Field Boss SeriesUtility tractorFiat built
Field Boss Series
Utility tractor
Fiat built |
|---|
Production | |
|---|---|
Distributor | White |
Manufacturer | Fiat |
Utility tractor | |
Built in Italy | |
Original price was $15,100 in 1980 | |
. | |
Variants | |
|---|---|
640 | similar Fiat model |
White 2-60 Engine | |
|---|---|
Fiat 3.5L 4-cyl diesel | |
Fuel tank | 14.4 gal
54.5 L |
Engine details ...  | |
White 2-60 Power | |
|---|---|
PTO (claimed) | 59 hp
44.0 kW |
Drawbar (tested) | 53.16 hp
39.6 kW |
PTO (tested) | 63.22 hp
47.1 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Steering | power assist |
Independent dry contracting band brakes | |
Four-post ROPS canopy. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2135 psi
147.2 bar |
Pump flow | 5.8 gpm
22.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Control | position and draft control |
Rear lift (at 24"/610mm) | 2400 lbs
1088 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 81.5 inches
207 cm |
Weight | 4530 to 5250 pounds |
Front tire | 7.50-16 |
2WD Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
References | |
|---|---|
 | |
New White Tractor Loaders published in 1978 | |
Loaders published in 1979, by White | |
2-50/2-60 Field Bosses published by White | |
1976 Farm Equipment Line published by White | |
1977 Farm Equipment Line published by White | |
1978 Farm Equipment Line published by White | |
1979 Farm Equipment Line published by White |
Engine
Engine Detail — 210.6 ci / 3.5 L Diesel
Manufacturer | Fiat |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 210.6 ci
3.5 L |
Bore/Stroke | 3.94x4.33 inches
100 x 110 mm |
Air cleaner | oil bath |
Compression | 17:1 |
Rated RPM | 2400 |
Idle RPM | 650-2600 |
Starter volts | 12 |
Oil capacity | 11 qts
10.4 L |
Coolant capacity | 14.8 qts
14.0 L |
Transmission
Transmission options | |
|---|---|
8-speed gear | |
12-speed creeper |
Transmission — 8 forward and 2 reverse gear
Type | gear |
Gears | 8 forward and 2 reverse |
Clutch | 279mm dry disc |
 | |
Transmission | |
Type | creeper |
Gears | 12 forward and 2 reverse |
Dimensions
White 2-60 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-16. Rear: 16.9-30 |
4WD Standard tires (ag) | Front: 9.5-24. Rear: 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 81.5 inches
207 cm |
Length | 126 inches
320 cm |
Width | 73 inches
185 cm |
Height (steering wheel) | 62.4 inches
158 cm |
2WD Clearance (front axle) | 20 inches
50 cm |
4WD Clearance (front axle) | 17 inches
43 cm |
2WD Front tread | 56 to 80 inches
142 to 203 cm |
4WD Front tread | 55/59 inches
139/149 cm |
Rear tread | 56 to 80 inches
142 to 203 cm |
White 2-60 Weight | |
|---|---|
2WD Shipping | 4530 lbs
2054 kg |
4WD Shipping | 5250 lbs
2381 kg |
2WD Operating | 5160 lbs
2340 kg |
Ballasted | 8990 lbs
4077 kg |
Tests
Nebraska Tractor Test 1232 | |
|---|---|
Diesel 8-speed 2WD
March 15 - 28, 1977
Link: Nebraska Tractor Test 1232 file | |
PTO performance | |
Power at rated engine speed | 63.22 hp
47.1 kW |
Fuel use | 3.7 gal/hour
14.0 l/hour |
Power at rated PTO speed | 54.35 hp
40.5 kW |
Fuel use | 3.1 gal/hour
11.7 l/hour |
Drawbar performance | |
Max power | 53.16 hp
39.6 kW |
Fuel use | 3.7 gal/hour
14.0 l/hour |
Gear 5 used for power test. | |
Attachments
Attachment overview | |
|---|---|
White 1510 loader | |
White 1610 loader | |
White 1730 QA loader | |
The model 1730-QA loader was specified only for four-wheel drive White 2-60 tractors. Canadian-market loaders for the White 2-60 were built by KMW. Either the model 120 (2WD) or the model 140 (4WD) were available. |
Photos

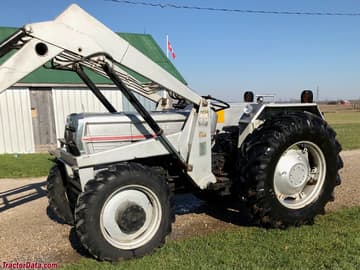

White 2-60
Recommended Implements & Sizing Guide
Engineering recommendations for White 2-60 based on its 63.22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White 2-60.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (14.4 gal / 54.5 L).
Estimated 75% Load Fuel Burn~3.3 gal/hr (12.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White 2-60 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White 2-60.
Converted Equivalents:
Horsepower (HP)63.2 hp
Kilowatts (kW)47.1 kW
Metric Horsepower (PS / CV)64.1 PS
Direct Competitor Comparison
Compare White 2-60 against same-era industry alternatives in the same horsepower class.
Current Model
White
White 2-60
Engine Power:63.22 hp
47.1 kW
★ Baseline Reference
