White 6125

The White 6125 is a tractor produced by White. It is equipped with a 359 ci 5.9 L engine. The rated power output is 124.94 hp 93.2 kW. Transmission: 18 forward and 9 reverse. Operating weight: 15400 to 16832 pounds.

Overview

	1993 - 1997 Workhorse 6100 SeriesRow-Crop tractor
1993 - 1997
Workhorse 6100 Series
Row-Crop tractor

Production
Manufacturer	White (a part of AGCO)
Row-Crop tractor
Built in Coldwater, Ohio, USA
Original price was $74,000 in 1997

Variants
6125	18-speed Funk power shift
6124	32-speed Quadrashift

White 6125 Engine
CDC-Cummins 5.9L 6-cyl diesel
Fuel tank	67 gal 253.6 L
Engine details ...

White 6125 Transmission
18-speed full power shift
Transmission details ...

White 6125 Power
PTO (claimed)	124 hp 92.5 kW
Drawbar (tested)	110.62 hp 82.5 kW
PTO (tested)	124.94 hp 93.2 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2300 psi 158.6 bar
Valves	3
Pump flow	22 gpm 83.3 lpm

Tractor hitch
Rear Type	III/II
Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	6900 lbs 3129 kg
	8800 lbsOptOptional 3991 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	106 inches 269 cm
Weight	15400 to 16832 pounds
Front tire	10.00-16
Rear tire	18.4R38D
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
Powershift Tractors published in 1996, by White

Engine

Engine Detail — 359 ci / 5.9 L Diesel

Manufacturer	CDC-Cummins 6BT5.9
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	359 ci 5.9 L
Bore/Stroke	4.02x4.72 inches 102 x 120 mm
Fuel system	direct injection
Air cleaner	two paper elements
Compression	18.5:1
Rated RPM	2200
Starter volts	12
Coolant capacity	21.8 qts 20.6 L

White 6125 Engine

Transmission

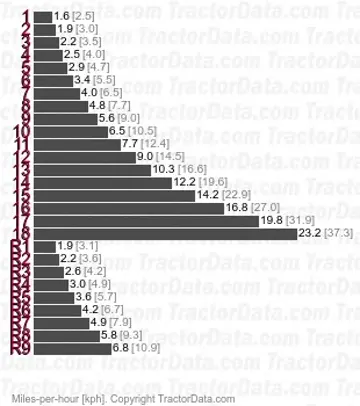

Transmission — 18 forward and 9 reverse full power shift

Manufacturer	Funk-Deere
Type	full power shift
Gears	18 forward and 9 reverse
Clutch	hydraulic wet disc

Dimensions

White 6125 Tires
Ag front	10.00-16
Ag rear	18.4R38D

Dimensions
Wheelbase	106 inches 269 cm
Length	179.6 inches 456 cm
Height	118.5 inches 300 cm
Bar rear axle	98 inch length 2489 mm
Bar rear axle	115 inch length 2921 mm

White 6125 Weight
Shipping	15400 lbs 6985 kg
Operating	16,832 lbs (4WD) 7634 kg
Ballasted	18,824 lbs 8538 kg

Tests

OCED Tractor Test 1676
Diesel 18-speed 4WD April 19 - May 10, 1994 Link: OCED Tractor Test 1676 file
PTO performance
Power at rated engine speed	124.94 hp 93.2 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Power at rated PTO speed	130.95 hp 97.6 kW
Fuel use	7.8 gal/hour 29.5 l/hour
Drawbar performance
Max power	110.62 hp 82.5 kW
Fuel use	7.9 gal/hour 29.9 l/hour
Gear 8 used for power test.
Max pull	19,896 lbs 9024 kg
Gear 3 used for pull test.

Photos

White 6125 tractor photo
