White 2-105

The White 2-105 is a tractor produced by White. It is equipped with a 354 ci 5.8 L engine. The rated power output is 105.61 hp 78.8 kW. Transmission: Hydraul-Shift. Operating weight: 11350 to 11810 pounds.

Overview

	1974 - 1982 Field Boss SeriesRow-Crop tractor
1974 - 1982
Field Boss Series
Row-Crop tractor

Production
Manufacturer	White
Row-Crop tractor
Original price was $37,000 in 1982

White 2-105 Engine
Perkins 5.8L 6-cyl diesel
Fuel tank	32.3 gal 122.3 L
	20 gal*Optional tank. 75.7 L
	78 gal*Optional fender tanks capacity. 295.2 L
Engine details ...

White 2-105 Power
PTO (claimed)	105 hp 78.3 kW
Drawbar (tested)	84.96 hp 63.4 kW
PTO (tested)	105.61 hp 78.8 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
Open operator station. Two-post fixed ROPS available. Cab available with air-conditioning.

Hydraulics
Type	closed center
Pressure	2200 psi 151.7 bar
Valves	2
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II
	III OptOptional
Control	draft sensing
Rear lift (at 24"/610mm)	4000 lbs 1814 kg
	6000 lbsOptOptional 2721 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	542@2200
	1007@2200

Dimensions & Tires
Wheelbase	103 inches 261 cm
Weight	11350 to 11810 pounds
Front tire	11L-15
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
New White Tractor Loaders published in 1978
Loaders published in 1979, by White
2-105/2-85 Field Bosses published by White
1975 Farm Equipment Line published by White
1976 Farm Equipment Line published by White
1977 Farm Equipment Line published by White
1978 Farm Equipment Line published by White
1979 Farm Equipment Line published by White

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Fuel system	direct injection
Air cleaner	dual dry elements
Compression	16:1
Rated RPM	2200
Idle RPM	600-2380
Starter volts	12
Oil capacity	16 qts 15.1 L
Coolant capacity	24 qts 22.7 L

Transmission

Transmission options
6-speed unsynchronized gear
18-speed three-speed power shift

Transmission — 6 forward and 2 reverse unsynchronized gear

Type	unsynchronized gear
Gears	6 forward and 2 reverse
Clutch	330.2mm cerametallic disc
Oil capacity	43 qts 40.7 L

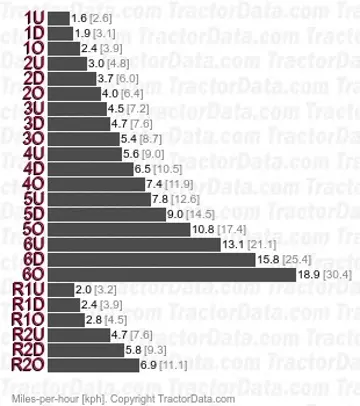

Transmission — Hydraul-Shift

Transmission	Hydraul-Shift
Type	three-speed power shift
Gears	18 forward and 6 reverse
Six forward and two reverse gears with an over and under power shift for each gear.

Dimensions

White 2-105 Tires
Ag front	11L-15
Ag rear	18.4-38
Ag rear	23.1-30
	16.9-34
	18.4-34
	23.1-34
	14.9-38

Dimensions
Wheelbase	103 inches 261 cm
Length	178.1 inches 452 cm
Width	80.6 inches 204 cm
Height (steering wheel)	85.5 inches 217 cm
Shipping weight	11350 lbs 5148 kg
Operating weight	11810 lbs 5357 kg
Clearance (front axle)	25.6 inches 65 cm
Clearance (rear axle)	25.4 inches 64 cm
Clearance (drawbar)	13.5 inches 34 cm
Rear axle	3.1875 inch diameter 80 mm
Front tread	61.5 to 87.5 inches 156 to 222 cm
Rear tread	61.5 to 111.5 inches 156 to 283 cm

Tests

Nebraska Tractor Test 1181
Diesel 18-speed 2WD June 16 - 23, 1975 Link: Nebraska Tractor Test 1181 file
PTO performance
Power at rated engine speed	105.61 hp 78.8 kW
Fuel use	6.7 gal/hour 25.4 l/hour
Drawbar performance
Max power	84.96 hp 63.4 kW
Fuel use	6.6 gal/hour 25.0 l/hour
Gear 4-under used for power test.
Max pull	9,212 lbs 4178 kg
Gear 2-direct used for pull test.

Attachments

Attachment overview
White 1730 QA loader
White 1840 QA loader

Photos

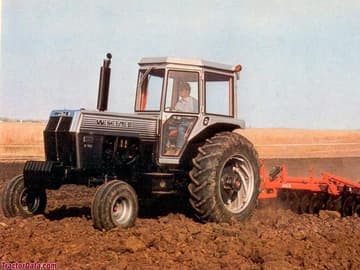

White 2-105 with cab, left side.

White 2-105 with cab, right side.

Two-post ROPS on White model 2-105
