Deutz-Fahr 4100E
The Deutz-Fahr 4100E is a tractor produced by Deutz Fahr. It is equipped with a 176.2 ci 2.9 L engine. The rated power output is 95.2 hp 71.0 kW. Transmission: 8 forward and reverse. Operating weight: 6614 lbs 3000 kg.
Engine Power
95.2 hp
71.0 kW
Fuel & Capacities
19.8 gal
74.9 L
Transmission
8 forward and reverse
Operating Weight
6614 lbs
3000 kg
Deutz Fahr Deutz-Fahr 4100E Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2018 -
4E SeriesUtility tractor |
|---|---|
2018 - | |
4E Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Deutz-Fahr |
Utility tractor | |
Deutz-Fahr 4100E Engine | |
|---|---|
SDF 2.9L 3-cyl diesel | |
Fuel tank | 19.8 gal
74.9 L |
Engine details ...  | |
Deutz-Fahr 4100E Power | |
|---|---|
Engine (gross) | 95.2 hp
71.0 kW |
Engine (max) | 95.2 hp
71.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 to 3 |
Pump flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5512 lbs
2500 kg |
7717 lbsOptOptional
3500 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
540/540E OptOptional | |
540/540E/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.7 inches
210 cm |
Weight | 6614 lbs
3000 kg |
Front tire | 360/70R24 |
Rear tire | 480/70R30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
4E Series published in 2018, by Deutz-Fahr |
Engine
Engine Detail — 176.2 ci / 2.9 L Diesel
Manufacturer | SDF FARMotion KD3TA |
Configuration | turbocharged intercooled diesel, 3-cylinder, liquid-cooled inline |
Displacement | 176.2 ci
2.9 L |
Bore/Stroke | 4.06x4.53 inches
103 x 115 mm |
Emissions | Stage IIIB |
Rated Power (gross) | 95.2 hp
71.0 kW |
Maximum Power (gross) | 95.2 hp
71.0 kW |
Rated RPM | 2200 |
Torque | 272.2 lb-ft
369.1 Nm |
Torque RPM | 1600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
15-speed partially synchronized | |
8-speed partially synchronized |

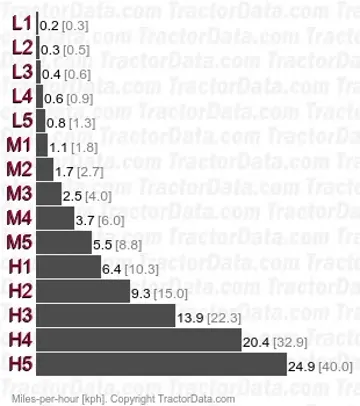

Transmission — 15 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 15 forward and reverse |
Five synchronized gears in three ranges with shuttle. | |
 | |
Transmission — 8 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 8 forward and reverse |
Four synchronized gears in two ranges with shuttle. | |
 | |
Dimensions
Deutz-Fahr 4100E Tires | |
|---|---|
Standard tires (ag) | Front: 360/70R24. Rear: 480/70R30 |
Dimensions | |
|---|---|
Wheelbase | 82.7 inches
210 cm |
Length | 152 inches
386 cm |
Width | 78.9 inches
200 cm |
Weight | 6614 lbs
3000 kg |
Max weight | 10582 lbs
4799 kg |
Photos
Deutz-Fahr 4100E tractor photo
