White 8510

The White 8510 is a tractor produced by White. It is equipped with a 505 ci 8.3 L engine. The rated power output is 164.38 hp 122.6 kW. Transmission: 18 forward and 6 reverse. Operating weight: 18500 to 19010 pounds.

Overview

	1998 - 2001 FieldMaster 8010 Series
1998 - 2001
FieldMaster 8010 Series

Production
Manufacturer	White (a part of AGCO)
Factories	Coldwater, Ohio, USA
	Beauvais, France
Original price was $101,000 in 1999

Variants
9755	similar AGCO Allis model

White 8510 Engine
Cummins 8.3L 6-cyl diesel
Fuel tank	120 gal 454.2 L
Engine details ...

White 8510 Transmission
18-speed full power shift
Transmission details ...

White 8510 Power
PTO (claimed)	160 hp 119.3 kW
Drawbar (tested)	142.58 hp 106.3 kW
PTO (tested)	164.38 hp 122.6 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Hydraulics
Type	closed center pressure-flow compensated (PFC)
Pressure	2900 psi 200.0 bar
Valves	4
Pump flow	29 gpm 109.8 lpm
	39 gpmOptOptional 147.6 lpm

Tractor hitch
Rear Type	III/IIIN
Rear lift (at 24"/610mm)	12000 lbs 5443 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@1990
	1000@2100

Dimensions & Tires
Wheelbase	121 inches 307 cm
Weight	18500 to 19010 pounds
Front tire	14.9-28
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
White Loaders published in 1999, by AGCO
Field Master New Generation published in 1998, by AGCO

Engine

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer	Cummins C8.3T
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	505 ci 8.3 L
Bore/Stroke	4.488x5.315 inches 114 x 135 mm
Air cleaner	dual paper elements
Rated RPM	2200
Starter	electric
Starter volts	12

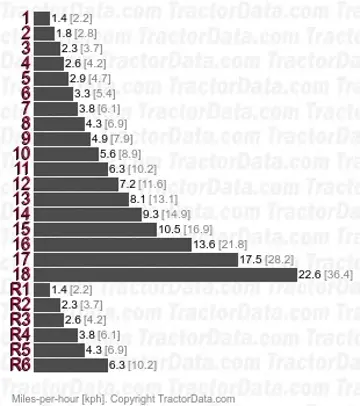

Transmission

Transmission — 18 forward and 6 reverse full power shift

Manufacturer	Funk-Deere
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Dimensions

White 8510 Tires
Ag front	14.9-28
Ag rear	18.4R38

Dimensions
Wheelbase	121 inches 307 cm
Length	203 inches 515 cm
Width	98.2 inches*Minimum width. 249 cm
Height (cab)	121 inches 307 cm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	61.5 to 126 inches 156 to 320 cm

White 8510 Weight
Shipping	18500 lbs 8391 kg
Operating	19010 lbs 8622 kg
Ballasted	22375 lbs 10149 kg

Tests

OCED Tractor Test 1781
Diesel 18-speed 4WD September 7 - 27, 2000 Link: OCED Tractor Test 1781 file
PTO performance
Power at rated engine speed	164.38 hp 122.6 kW
Fuel use	10.7 gal/hour 40.5 l/hour
Power at rated PTO speed	168.30 hp 125.5 kW
Fuel use	10.5 gal/hour 39.7 l/hour
Drawbar performance
Max power	142.58 hp 106.3 kW
Fuel use	10.4 gal/hour 39.4 l/hour
Gear 10 used for power test.
Max pull	20,868 lbs 9465 kg
Gear 3 used for pull test.

Photos

White 8510 tractor photo
