Yanmar EF326

The Yanmar EF326 is a tractor produced by Yanmar. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 25.6 hp 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2954 to 3351 pounds.

Overview

	2002 - 2004 EF300 SeriesCompact Utility tractor
2002 - 2004
EF300 Series
Compact Utility tractor

Production
Manufacturer	Yanmar
Compact Utility tractor

Variants
EF326Q	Cab

Yanmar EF326 Engine
Yanmar 1.5L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Yanmar EF326 Transmission
16-speed four-speed power shift
Transmission details ...

Yanmar EF326 Power
Engine	25.6 hp 19.1 kW

Mechanical
Four-wheel drive

Tractor hitch
Rear Type	JIS1
Rear lift	3307 lbs 1500 kg

Power Take-off (PTO)
Rear PTO	540 (1.375)
Engine RPM	547@2600
	755@2600
	955@2600
	1248@2600
	-600@2600

Dimensions & Tires
Wheelbase	64.6 inches 164 cm
Weight	2954 to 3351 pounds
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
EF300 Series (41812-011884) published in 2004

Engine

Engine Detail — 91.3 ci / 1.5 L Diesel

Manufacturer	Yanmar 3TNV84
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	3.31x3.54 inches 84 x 90 mm
Power	25.6 hp 19.1 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

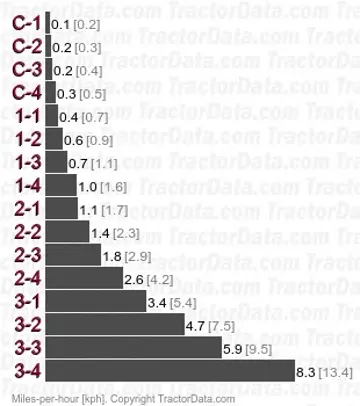

Transmission — 16 forward and reverse four-speed power shift

Type	four-speed power shift
Gears	16 forward and reverse
Four power shift gears in four ranges, with shuttle.

Dimensions

Yanmar EF326 Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24

Dimensions
Wheelbase	64.6 inches 164 cm
Length	120.7 inches 306 cm
Width	54.7 inches 138 cm
Height (ROPS)	77 inches 195 cm
Height (cab)	77.6 inches 197 cm
ROPS Weight	2954 lbs 1339 kg
Cab Weight	3351 lbs 1520 kg
Ground clearance	12.4 inches 31 cm
Front tread	43.3 inches 109 cm
Rear tread	41.7 to 53.5 inches 105 to 135 cm
