Yanmar EF326V
The Yanmar EF326V is a tractor produced by Yanmar. It is equipped with a 91.3 ci 1.5 L engine. The listed engine power is Diesel (listed): 25.6 hp / 19.1 kW. Transmission: 16 forward and reverse. Operating weight: 2954 to 3351 pounds.
Engine Power
Diesel (listed): 25.6 hp / 19.1 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
16 forward and reverse
Operating Weight
2954 to 3351 pounds
Overview
 | 2005 - 2009
EF300V SeriesCompact Utility tractor
EF300V Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Yanmar |
Compact Utility tractor | |
Variants | |
|---|---|
EF326V | ROPS |
EF326VQ | Cab |
EF326VJ | ROPS high-speed |
EF326VJQ | Cab high-speed |
Yanmar EF326V Engine | |
|---|---|
Yanmar 1.5L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ...  | |
Yanmar EF326V Transmission | |
|---|---|
16-speed four-speed power shift | |
Transmission details ...  |
Yanmar EF326V Power | |
|---|---|
Engine | 25.6 hp
19.1 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Rear lift | 3307 lbs
1500 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | 540 (1.375) |
Engine RPM | 547@2600 |
755@2600 | |
955@2600 | |
1248@2600 | |
-600@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 64.6 inches
164 cm |
Weight | 2954 to 3351 pounds |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
EF300V Series published in 2005, by Yanmar | |
EF300V Series (0A041-J00501) published in 2009 |
Engine
Engine Detail — 91.3 ci / 1.5 L Diesel
Manufacturer | Yanmar 3TNV84 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.3 ci
1.5 L |
Bore/Stroke | 3.31x3.54 inches
84 x 90 mm |
Power | 25.6 hp
19.1 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission

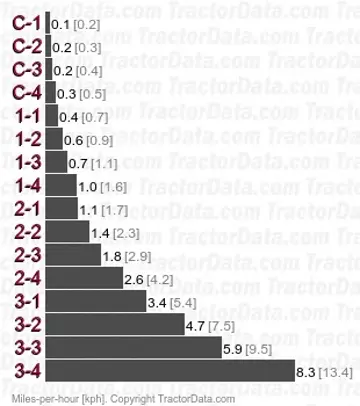

Transmission — 16 forward and reverse four-speed power shift
Type | four-speed power shift |
Gears | 16 forward and reverse |
Four power shift gears in four ranges, with shuttle. | |
 | |
Dimensions
Yanmar EF326V Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 64.6 inches
164 cm |
Length | 120.7 inches
306 cm |
ROPS Width | 53.5 inches
135 cm |
Cab Width | 54.7 inches
138 cm |
Height (ROPS) | 77 inches
195 cm |
Height (cab) | 77.6 inches
197 cm |
ROPS Weight | 2954 lbs
1339 kg |
Cab Weight | 3351 lbs
1520 kg |
Ground clearance | 12.4 inches
31 cm |
Front tread | 43.3 inches
109 cm |
Rear tread | 41.7 to 53.5 inches
105 to 135 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Yanmar EF326V based on its 25.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yanmar EF326V.
Estimated Continuous Field Runtime: 5.3 hrs
Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.3 gal/hr (5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yanmar EF326V Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yanmar EF326V.
Converted Equivalents:
Horsepower (HP)25.6 hp
Kilowatts (kW)19.1 kW
Metric Horsepower (PS / CV)26 PS
Direct Competitor Comparison
Compare Yanmar EF326V against same-era industry alternatives in the same horsepower class.
Current Model
Yanmar
Yanmar EF326V
Engine Power:Diesel (listed): 25.6 hp / 19.1 kW
★ Baseline Reference
