Yard-Man 13525

The Yard-Man 13525 is a tractor produced by Yard Man Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 5 forward and 1 reverse. Operating weight: 350 lbs 158 kg.

Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
1 gal 3.8 L
Transmission
5 forward and 1 reverse
Operating Weight
350 lbs 158 kg

Overview

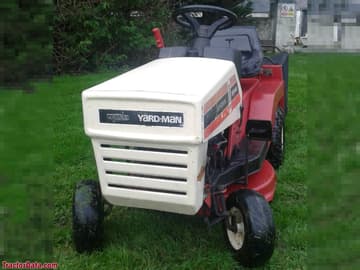

Yard-Man 13525 tractor photo
1979 Lawn tractor
Production
Manufacturer
Yard-Man (a part of MTD)
Lawn tractor
Yard-Man 13525 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank
1 gal 3.8 L
Engine details ...
Yard-Man 13525 Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Dimensions & Tires
Weight
350 lbs 158 kg
Front tire
11x4
Rear tire
14.50x4.50
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Displacement
318 cc 19.44 ci
Bore/Stroke
3.00x2.75 inches 76 x 70 mm
Power
8 hp 6.0 kW
Starter
electric
Starter volts
12

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
5 forward and 1 reverse

Dimensions

Yard-Man 13525 Tires
Lawn/turf front
11x4
Lawn/turf rear
14.50x4.50
Dimensions
Shipping weight
350 lbs 158 kg

Attachments

26" Mower deck
Type
mid-mount Yard-Man
1-blade with manual lift
Cutting width
26 inches 66 cm
Cut height
1.25 to 3.25 inch 3 to 8 cm

Photos

Yard-Man 13525

Yard-Man 13525

Yard-Man 13525

Yard-Man 13525

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Yard Man Lawn Tractors Yard-Man 13525.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Yard Man Lawn Tractors Yard-Man 13525 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Yard Man Lawn Tractors Yard-Man 13525.

Converted Equivalents:

Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
