YTO X1004
The YTO X1004 is a tractor produced by Yto. The listed engine power is Diesel (listed): 98.6 hp / 73.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 11,640 lbs 5279 kg.
Engine Power
Diesel (listed): 98.6 hp / 73.5 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
11,640 lbs
5279 kg
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Built in Luoyang, Henan Province, China | |
YTO X1004 Engine | |
|---|---|
YTO 6-cyl diesel | |
Engine details ...  |
YTO X1004 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
YTO X1004 Power | |
|---|---|
Engine | 98.6 hp
73.5 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 15.8 inches
40 cm |
Weight | 11,640 lbs
5279 kg |
Front tire | 14.9-24 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Diesel
Manufacturer | YTO LR6105T10X |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Power | 98.6 hp
73.5 kW |
Rated RPM | 2400 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
YTO X1004 Tires | |
|---|---|
Ag front | 14.9-24 |
Ag rear | 16.9-38 |
Dimensions | |
|---|---|
Wheelbase | 15.8 inches
40 cm |
Length | 187.8 inches
477 cm |
Width | 91.7 inches
232 cm |
Height | 116.5 inches
295 cm |
Weight | 11,640 lbs
5279 kg |
Ground clearance | 18.5 inches
46 cm |

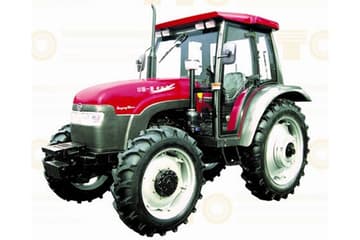

Photos
YTO X1004
Recommended Implements & Sizing Guide
Engineering recommendations for Yto X1004 based on its 98.6 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yto X1004.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yto X1004 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yto X1004.
Converted Equivalents:
Horsepower (HP)98.6 hp
Kilowatts (kW)73.5 kW
Metric Horsepower (PS / CV)100 PS
Direct Competitor Comparison
Compare YTO X1004 against same-era industry alternatives in the same horsepower class.
Current Model
Yto
YTO X1004
Engine Power:Diesel (listed): 98.6 hp / 73.5 kW
★ Baseline Reference
