YTO X804
The YTO X804 is a tractor produced by Yto. The rated power output is 78.9 hp 58.8 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6,934 lbs 3145 kg.
Engine Power
78.9 hp
58.8 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse
Operating Weight
6,934 lbs
3145 kg
Yto X804 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | YTO |
Built in Luoyang, Henan Province, China | |
Variants | |
|---|---|
X800 | 2WD |
YTO X804 Engine | |
|---|---|
YTO 4-cyl diesel | |
Engine details ...  |
YTO X804 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
YTO X804 Power | |
|---|---|
Engine | 78.9 hp
58.8 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear lift | 3,709 lbs
1682 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Weight | 6,934 lbs
3145 kg |
Front tire | 11.2-28 |
Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Diesel
Manufacturer | YTO LR4108 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Power | 78.9 hp
58.8 kW |
Rated RPM | 2300 |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Dimensions
YTO X804 Tires | |
|---|---|
Ag front | 11.2-28 |
Ag rear | 13.6-38 |
Dimensions | |
|---|---|
Wheelbase | 91.1 inches
231 cm |
Length | 167.7 inches
425 cm |
Width | 85.4 inches
216 cm |
Height | 113.2 inches
287 cm |
Weight | 6,934 lbs
3145 kg |
Ground clearance | 16.9 inches
42 cm |
Photos

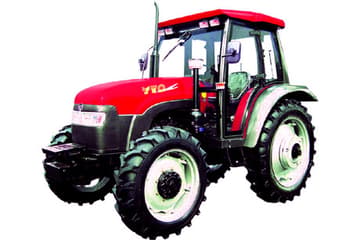

YTO X804
