Zetor 10045
The Zetor 10045 is a tractor produced by Zetor. It is equipped with a 278.4 ci 4.6 L engine. The listed engine power is Diesel (listed): 100 hp / 74.6 kW. Transmission: 16 forward and 8 reverse. Operating weight: 9348 lbs 4240 kg.
Engine Power
Diesel (listed): 100 hp / 74.6 kW
Fuel & Capacities
direct injection
Transmission
16 forward and 8 reverse
Operating Weight
9348 lbs
4240 kg
Overview
 | 1978 - 1987
Crystal UR2 SeriesRow-Crop tractor
Crystal UR2 Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czechoslovakia | |
Variants | |
|---|---|
10011 | 2WD |
10045 | 4WD |
Zetor 10045 Engine | |
|---|---|
Zetor 4.6L 4-cyl diesel | |
Engine details ...  |
Zetor 10045 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Zetor 10045 Power | |
|---|---|
Engine | 100 hp
74.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Hydraulic dry disc brakes | |
Cab standard. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 |
Pump flow | 8.4 gpm
31.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | lower-link draft control |
Rear lift | 7496 lbs
3400 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Weight | 9348 lbs
4240 kg |
Front tire | 11.2-24 |
Rear tire | 16.9-34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 278.4 ci / 4.6 L Diesel
Manufacturer | Zetor Z 8002 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 278.4 ci
4.6 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 100 hp
74.6 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Transmission
Transmission — 16 forward and 8 reverse
Gears | 16 forward and 8 reverse |
Four gears in two ranges with two-speed torque multiplier. | |
Dimensions
Zetor 10045 Tires | |
|---|---|
Ag front | 11.2-24 |
Ag rear | 16.9-34 |
Dimensions | |
|---|---|
Weight | 9348 lbs
4240 kg |
Photos

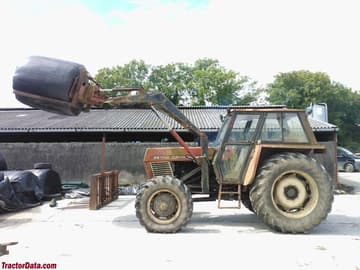

Zetor Crystal 10045 with front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Zetor 10045 based on its 100 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Zetor 10045.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Zetor 10045 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Zetor 10045.
Converted Equivalents:
Horsepower (HP)100 hp
Kilowatts (kW)74.6 kW
Metric Horsepower (PS / CV)101.4 PS
Direct Competitor Comparison
Compare Zetor 10045 against same-era industry alternatives in the same horsepower class.
Current Model
Zetor
Zetor 10045
Engine Power:Diesel (listed): 100 hp / 74.6 kW
★ Baseline Reference
