Zetor 12245
The Zetor 12245 is a tractor produced by Zetor. It is equipped with a 417.5 ci 6.8 L engine. The rated power output is 120 hp 89.5 kW. Transmission: 16 forward and 8 reverse. Operating weight: 10626 lbs 4819 kg.
Engine Power
120 hp
89.5 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
16 forward and 8 reverse
Operating Weight
10626 lbs
4819 kg
Zetor 12245 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1990 - 1997
Row-Crop tractor |
|---|---|
1990 - 1997 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czechoslovakia | |
Original price was $35,000 in 1992 | |
Variants | |
|---|---|
12211 | 2WD |
12245 | 4WD |
Zetor 12245 Engine | |
|---|---|
Zetor 6.8L 6-cyl diesel | |
Fuel tank | 34.3 gal
129.8 L |
Engine details ...  | |
Zetor 12245 Transmission | |
|---|---|
16-speed synchromesh | |
Transmission details ...  |
Zetor 12245 Power | |
|---|---|
Engine | 120 hp
89.5 kW |
PTO (claimed) | 105 hp
78.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Trailer brakes | pneumatic |
hydraulic OptOptional | |
Cab standard with heater. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2800 psi
193.1 bar |
Valves | 2 |
Pump flow | 12.4 gpm
46.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 8650 lbs
3923 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 106.1 inches
269 cm |
Weight | 10626 lbs
4819 kg |
Front tire | 14.9x24 |
Rear tire | 18.4x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
References | |
|---|---|
 | |
Tractor Model 12111 / 12145 published by Zetor |
Engine
Engine Detail — 417.5 ci / 6.8 L Diesel
Manufacturer | Zetor Z 8701.12 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 417.5 ci
6.8 L |
Bore/Stroke | 4.33x4.72 inches
110 x 120 mm |
Power | 120 hp
89.5 kW |
Fuel system | direct injection |
Rated RPM | 2200 |
Starter type | electric |
Coolant capacity | 24 qts
22.7 L |

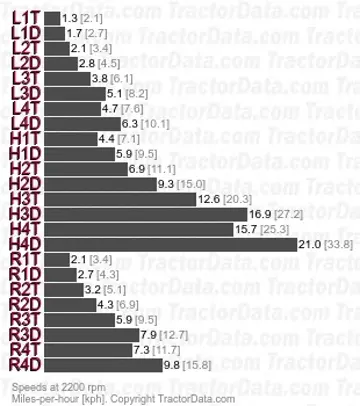

Transmission
Transmission — 16 forward and 8 reverse synchromesh
Type | synchromesh |
Gears | 16 forward and 8 reverse |
Clutch | 380mm mechanical dry disc |
Four gears (1-4) in two ranges (low-high) with direct-drive and torque multiplier. | |
With 18.4x38 rear tires. | |
 | |
Dimensions
Zetor 12245 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9x24. Rear: 18.4x38 |
Dimensions | |
|---|---|
Wheelbase | 106.1 inches
269 cm |
Length | 173.2 inches
439 cm |
Width | 76.8 inches
195 cm |
Height (cab) | 106.7 inches
271 cm |
Height (exhaust) | 113.4 inches
288 cm |
Weight | 10626 lbs
4819 kg |
Ballasted weight | 12059 lbs
5469 kg |
Ground clearance | 15 inches
38 cm |
Front tread | 66.9 to 70.9 inches
169 to 180 cm |
Rear tread | 59.1 to 73.8 inches
150 to 187 cm |
