AGCO RT150
The AGCO RT150 is a tractor produced by Agco. It is equipped with a 408 ci 6.7 L engine. The listed engine power is 152.75 hp 113.9 kW. Transmission: QuadraShift. Operating weight: 14528 to 16415 pounds.
Engine Power
152.75 hp
113.9 kW
Fuel & Capacities
100 gal
378.5 L
Transmission
QuadraShift
Operating Weight
14528 to 16415 pounds
Overview
 | 2004 - 2005
RT SeriesRow-Crop tractor
RT Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | AGCO |
Row-Crop tractor | |
Built in Beauvais, France | |
AGCO RT150 Engine | |
|---|---|
Cummins 6.7L 6-cyl diesel | |
Fuel tank | 100 gal
378.5 L |
Engine details ...  | |
AGCO RT150 Power | |
|---|---|
PTO (claimed) | 150 hp
111.9 kW |
Drawbar (tested) | 121.90 hp
90.9 kW |
PTO (tested) | 156.18 hp
116.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard with optional automatic climate control. | |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensating (PFC) |
Pressure | 2900 psi
200.0 bar |
Valves | 4 or 5 |
SCV flow | 29 gpm
109.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/IIIN |
Control | electronic lower-link |
Rear lift (at 24"/610mm) | 14,500 lbs
6577 kg |
12,500 lbs (CVT)
5670 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Front PTO | optional |
Dimensions & Tires | |
|---|---|
Wheelbase | 113.8 inches
289 cm |
Weight | 14528 to 16415 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Batteries | 2 |
Battery volts | 12 |
Engine
Engine Detail — 408 ci / 6.7 L Diesel
Manufacturer | Cummins |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 408 ci
6.7 L |
Bore/Stroke | 4.094x5.197 inches
104 x 132 mm |
Emissions | Tier II |
Air cleaner | dual paper elements |
Pre-heating | grid heater |
Compression | 17.5:1 |
Rated RPM | 2200 |
Torque | 551 lb-ft
747.2 Nm |
Torque RPM | 1200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
continuously variable transmission | |
32-speed partial power shift |
Transmission — PowerMaxx CVT
Transmission | PowerMaxx CVT |
Type | continuously variable transmission |
Gears | infinite forward and reverse (2-range) |
 | |
Transmission — QuadraShift
Transmission | QuadraShift |
Type | partial power shift |
Gears | 32 forward and reverse |
Four power shift gears in four ranges. | |
Dimensions
AGCO RT150 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 113.8 inches
289 cm |
Clearance (drawbar) | 14 inches
35 cm |
Front tread | 61.2 to 89.2 inches
155 to 226 cm |
Rear tread | 60.5 to 120 inches
153 to 304 cm |
AGCO RT150 Weight | |
|---|---|
Shipping | 14,528 lbs (4WD Cab)
6589 kg |
15,057 lbs (4WD CVT Cab)
6829 kg | |
Operating | 16,415 lbs (4WD CVT Cab)
7445 kg |
Ballasted | 19,880 lbs
9017 kg |
Tests
OCED Tractor Test 1843 | |
|---|---|
Diesel CVT 4WD
October 11 - 27, 2004
Link: OCED Tractor Test 1843 file | |
PTO performance | |
Max power | 156.18 hp
116.5 kW |
Fuel use | 9.4 gal/hour
35.6 l/hour |
Power at rated engine speed | 152.75 hp
113.9 kW |
Fuel use | 10.0 gal/hour
37.9 l/hour |
Power at rated PTO speed | 155.20 hp
115.7 kW |
Fuel use | 9.6 gal/hour
36.3 l/hour |
Drawbar performance | |
Max power | 121.90 hp
90.9 kW |
Fuel use | 10.1 gal/hour
38.2 l/hour |
Pull at 7.5 KPH | |
Max pull | 18,224 lbs
8266 kg |
Pull at 3.7 KPH | |
Photos

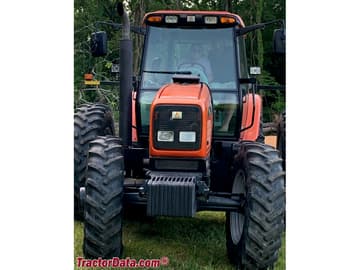

AGCO RT150
Recommended Implements & Sizing Guide
Engineering recommendations for Agco RT150 based on its 152.75 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Agco RT150.
Estimated Continuous Field Runtime: 12.6 hrs
Approximately 12.6 hours of continuous field operation at ~75% rated power on a full tank (100 gal / 378.5 L).
Estimated 75% Load Fuel Burn~7.9 gal/hr (30.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Agco RT150 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Agco RT150.
Converted Equivalents:
Horsepower (HP)152.8 hp
Kilowatts (kW)113.9 kW
Metric Horsepower (PS / CV)154.9 PS
Direct Competitor Comparison
Compare AGCO RT150 against same-era industry alternatives in the same horsepower class.
Current Model
Agco
AGCO RT150
Engine Power:152.75 hp
113.9 kW
★ Baseline Reference
