Allis Chalmers 416

The Allis Chalmers 416 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 588 cc 35.89 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 869 lbs (hydro) 394 kg.

Engine Power

Gasoline (listed): 16 hp / 11.9 kW

Fuel & Capacities

3.5 gal 13.2 L

Transmission

infinite forward and reverse

Operating Weight

869 lbs (hydro) 394 kg

Overview

	1973 400 SeriesGarden tractor 400 Series Garden tractor

Production
Manufacturer	Allis Chalmers
Garden tractor
Built in Lexington, South Carolina, USA

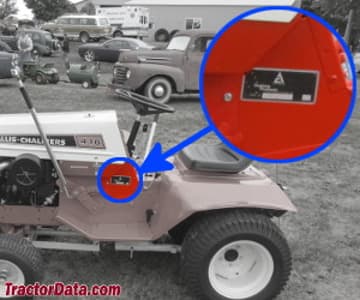

The Allis-Chalmers 416S was Simplicity model code 1600260 and the Allis-Chalmers 416H was model code 1600261. There was no corresponding Simpicity model, but these codes are used to identify parts and manuals in the Simplicity catalog.

Variants
416S	shuttle
416H	hydrostatic

Allis Chalmers 416 Engine
16HP Kohler 588cc 1-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Power Take-off (PTO)
Rear PTO	optional
Rear PTO Type	540
Front PTO	independent
Clutch	electric
Front PTO Type	3600

Dimensions & Tires
Wheelbase	48.1 inches 122 cm
Weight	852 to 869 pounds
Front tire	16-6.50x8
Rear tire	23-10.50x12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

References

400 Series Tractors published in 1972, by Allis-Chalmers
Operator's Manual 400 Series Tractor (TP-1504) published in 1973
Yardpower published in 1973, by Allis-Chalmers

Engine

Engine Detail — 588 cc / 35.89 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	588 cc 35.89 ci
Bore/Stroke	3.75x3.25 inches 95 x 83 mm
Power	16 hp 11.9 kW
Air cleaner	dry element
Rated RPM	3600
Starter volts	12
Oil capacity	2 qts 1.9 L
Oil change	25 h

Transmission

Transmission options
4-speed shuttle
hydrostatic

Transmission — 4 forward and reverse belt-driven shuttle

Type	belt-driven shuttle
Gears	4 forward and reverse
Oil capacity	1.5 qts 1.4 L
Four speed transmission with right-hand shuttle lever. Tractor must be stopped to shift gears and shuttle lever in neutral, or the clutch/brake pedal fully depressed.

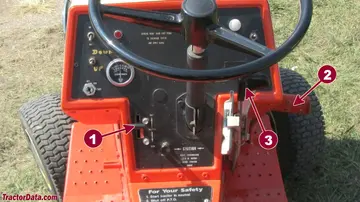

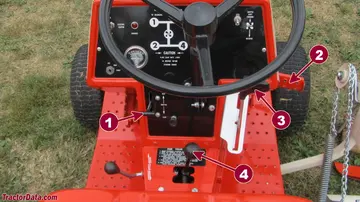

416 Transmission Controls

1	Throttle
2	Clutch/brake
3	Shuttle shift
4	Gear shift

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

416 Transmission Controls

1	Throttle
2	Clutch/brake
3	Forward/reverse

Dimensions

Allis Chalmers 416 Tires
Lawn/turf front	16-6.50x8
Lawn/turf rear	23-10.50x12

Dimensions
Wheelbase	48.1 inches 122 cm
Length	74 inches 187 cm
Width	38.5 inches 97 cm
Height (steering wheel)	43 inches 109 cm
Height (hood)	39 inches 99 cm
Weight	869 lbs (hydro) 394 kg
	852 lbs (shuttle) 386 kg
Clearance (front axle)	8 inches 20 cm
Clearance (rear axle)	6 inches 15 cm
Clearance (drawbar)	7.5 inches 19 cm
Front tread	30.7 inches 77 cm
Rear tread	28 inches 71 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

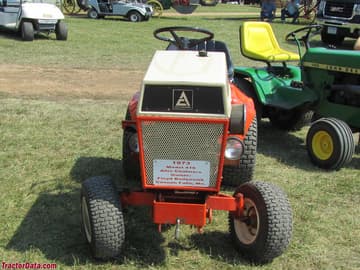

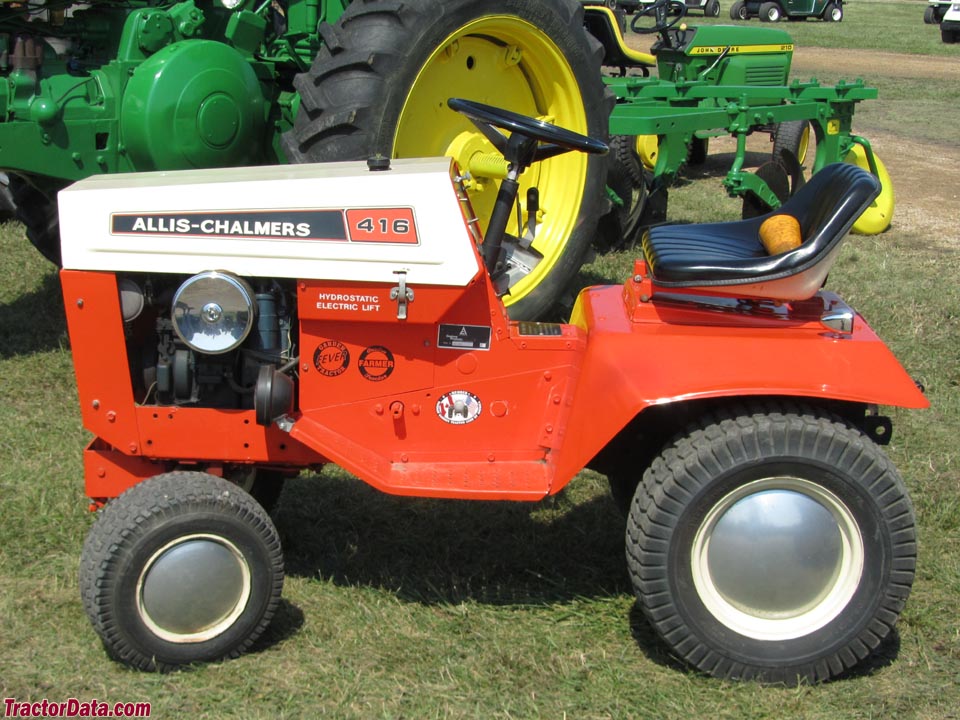

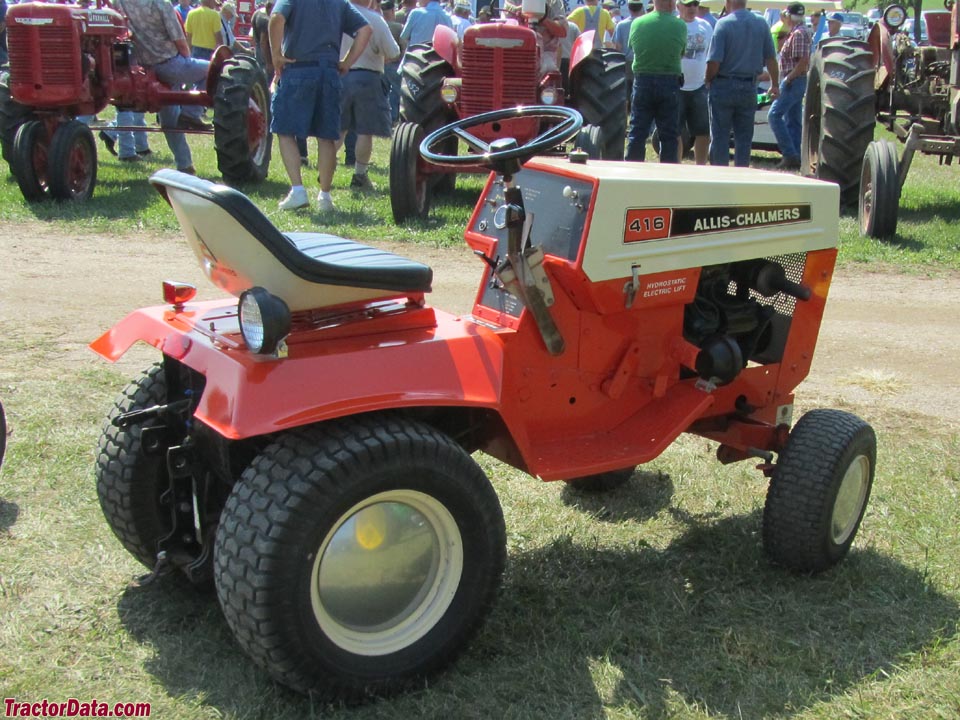

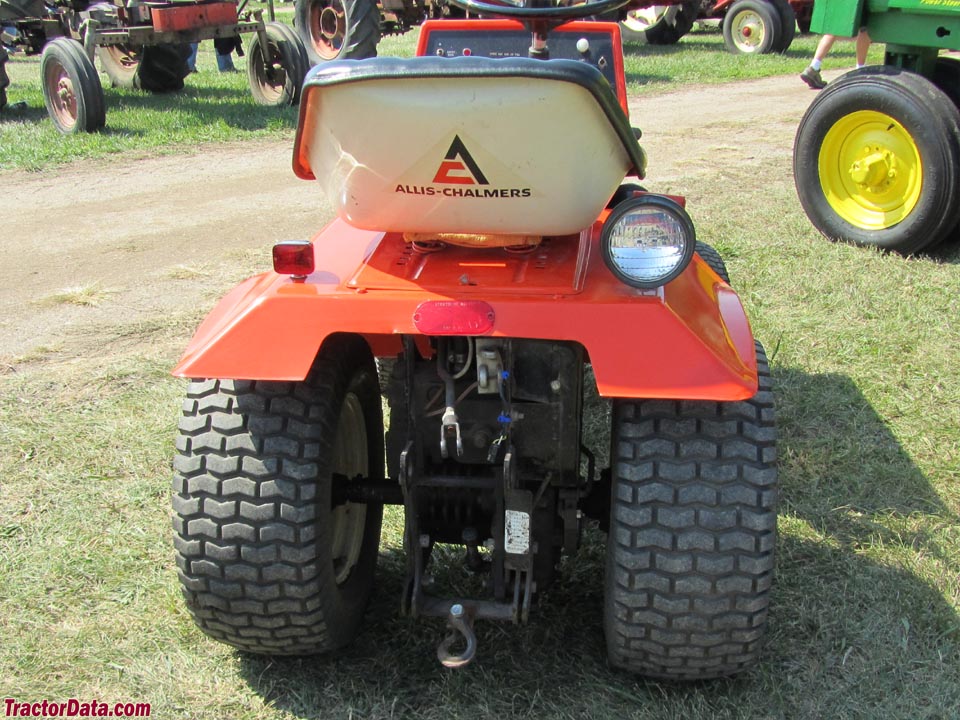

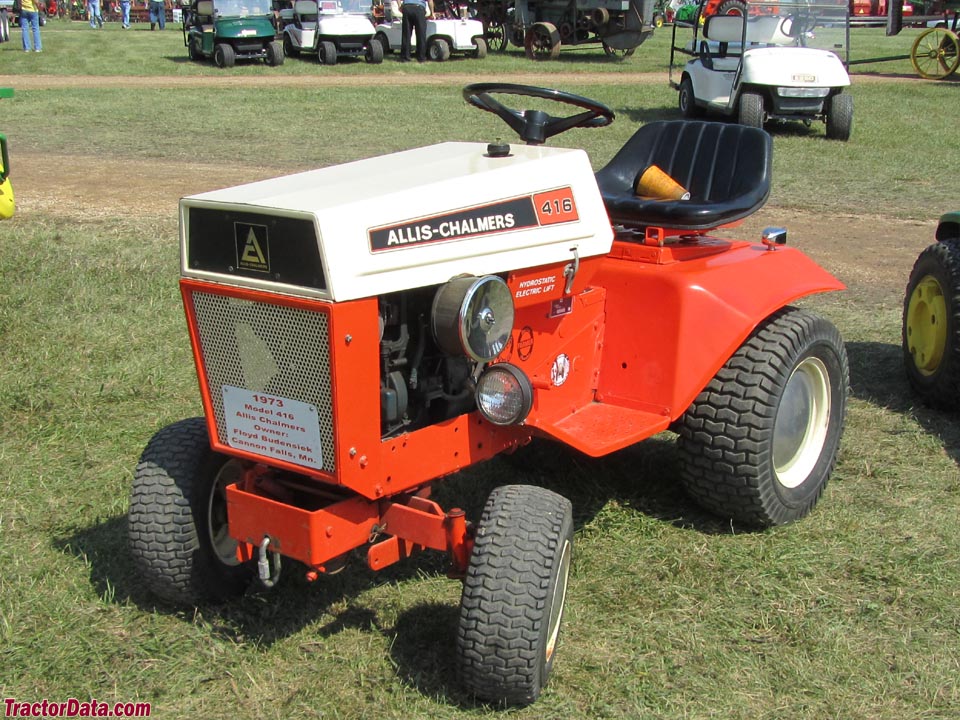

Allis-Chalmers 416 hydrostatic, right side.

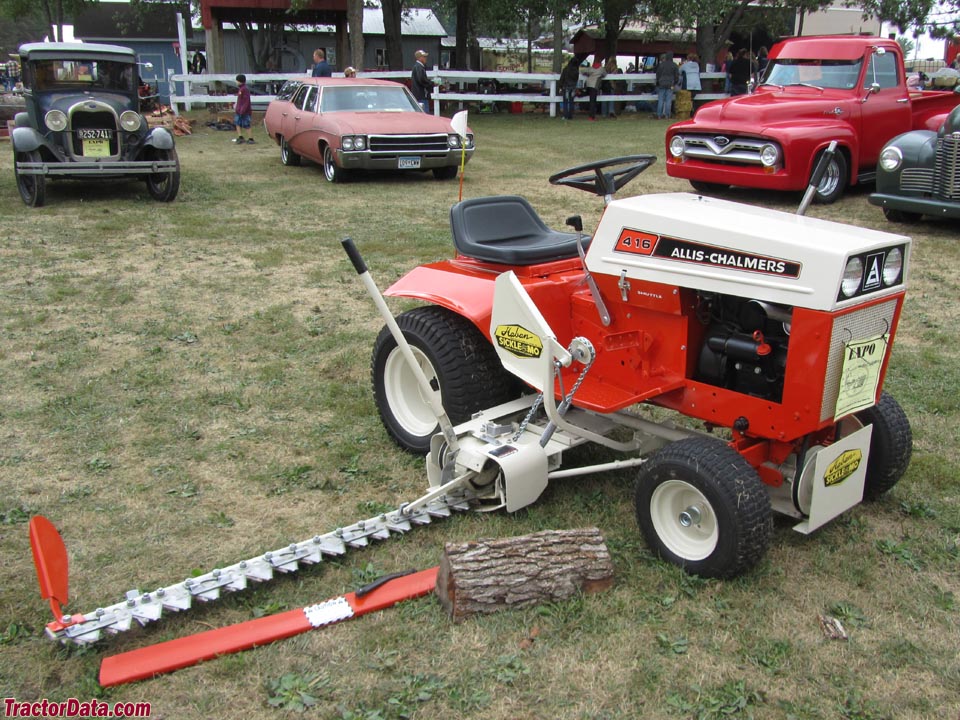

Allis-Chalmers 416 with Haban sickle mower.

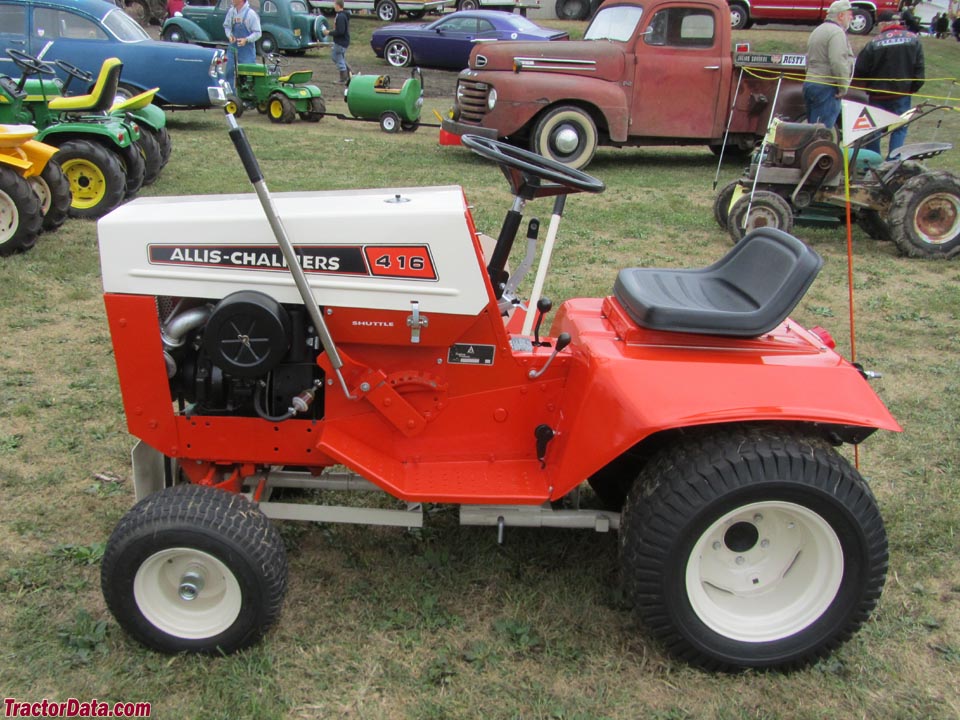

Allis-Chalmers 416 shuttle, left side.

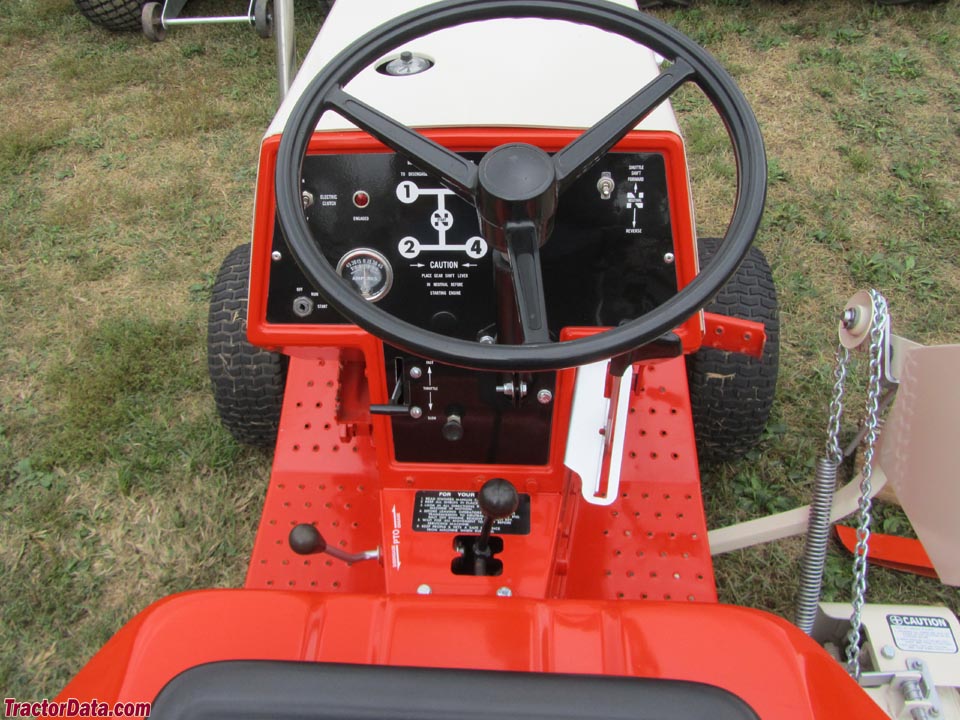

Allis-Chalmers 416 shuttle operator station and controls.

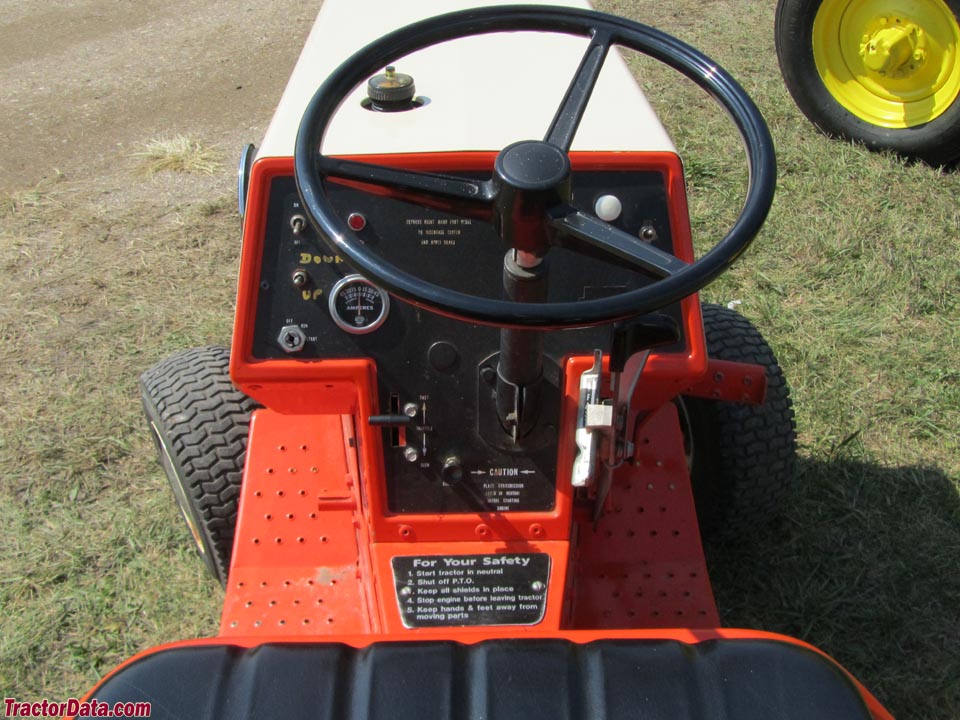

Allis-Chalmers 416 hydrostatic operator station and controls.
