Allis Chalmers 910 1690515

The Allis Chalmers 910 1690515 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 391 cc 23.9 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 6 forward and 2 reverse.

Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
6 forward and 2 reverse

Overview

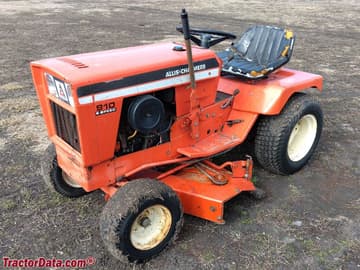

Allis Chalmers 910 1690515 tractor photo
1980 900 SeriesGarden tractor 900 Series Garden tractor
Production
Manufacturer
Allis Chalmers
Garden tractor
Built in Port Washington, Wisconsin, USA
Allis Chalmers 910 Engine
10HP Kohler 391cc 1-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Allis Chalmers 910 Transmission
6-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Tractor hitch
Type
sleeve hitch OptOptional
Dimensions & Tires
Wheelbase
50.7 inches 128 cm
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
flywheel alternator
Charging amps
15
Battery volts
12
References
910 1690515 references literature
900 Series Garden Tractors published in 1979, by Allis-Chalmers
Operator's Manual 900 Series Tractor (1666746) published in 1980

Engine

Engine Detail — 391 cc / 23.9 ci Gasoline

Manufacturer
Kohler K241
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
391 cc 23.9 ci
Bore/Stroke
3.25x2.875 inches 83 x 73 mm
Power
10 hp 7.5 kW
Air cleaner
dry
Starter
electric
Starter volts
12
Allis Chalmers 910 Engine
Allis Chalmers 910 engine image

Transmission

Transmission — 6 forward and 2 reverse belt-driven gear

Type
belt-driven gear
Gears
6 forward and 2 reverse
Oil capacity
2.25 qts 2.1 L
910 1690515 belt-driven gear speeds
Allis Chalmers 910 Transmission
Allis Chalmers 910 transmission image

Dimensions

Allis Chalmers 910 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
50.7 inches 128 cm
Length
70 inches 177 cm
Width
36.9 inches 93 cm
Height (steering wheel)
39.7 inches 100 cm
Height (hood)
35.7 inches 90 cm
Front tread
30 inches 76 cm
Rear tread
27 inches 68 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Allis Chalmers 910 1690515

Allis Chalmers 910 1690515

Allis-Chalmers 910 with hood and rear fender deck opened.

Allis-Chalmers 910 with hood and rear fender deck opened.

Allis-Chalmers 910 operator station and controls.

Allis-Chalmers 910 operator station and controls.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers 910 1690515.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Allis Chalmers Lawn Tractors Allis Chalmers 910 1690515 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers 910 1690515.

Converted Equivalents:

Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
