Allis Chalmers B-110

The Allis Chalmers B-110 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 393 cc 24 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: Hi-Lo. Operating weight: 685 lbs 310 kg.

Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
1.5 gal 5.7 L
Transmission
Hi-Lo
Operating Weight
685 lbs 310 kg

Overview

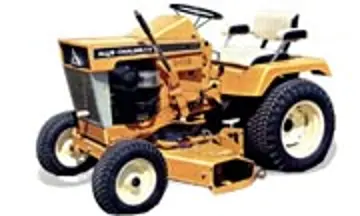

Allis Chalmers B-110 tractor photo
1968 - 1970 B SeriesGarden tractor B Series Garden tractor
Production
Manufacturer
Allis Chalmers
Garden tractor
Built in Lexington, South Carolina, USA
Allis Chalmers B-110 Engine
10HP Briggs & Stratton 393cc 1-cyl gasoline
Fuel tank
1.5 gal 5.7 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Rear PTO
live
Mid PTO
live
Front PTO
live
Dimensions & Tires
Wheelbase
44 inches 111 cm
Weight
685 lbs 310 kg
Front tire
4.80x8
Rear tire
23-8.50x12
Full dimensions and tires ...
Links
Allis-Chalmers B-110: information, photos and old advertising literature at SimpleTractors.com
Electrical
Ground
negative
Battery volts
12
References
B-110 references literature
Service Manual B Series Tractors (9003453) published in 1976

Engine

Engine Detail — 393 cc / 24 ci Gasoline

Manufacturer
Briggs & Stratton 243431
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
393 cc 24 ci
Bore/Stroke
3.0625x3.25 inches 78 x 83 mm
Power
10 hp 7.5 kW
Air cleaner
oiled foam
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission options
3-speed gear
6-speed

Transmission — 3 forward and 1 reverse gear

Type
gear
Gears
3 forward and 1 reverse
B-110 gear speeds

Transmission — Hi-Lo

Transmission
Hi-Lo
Gears
6 forward and 2 reverse

Dimensions

Allis Chalmers B-110 Tires
Lawn/turf front
4.80x8
Lawn/turf rear
23-8.50x12
Dimensions
Wheelbase
44 inches 111 cm
Length
68.1 inches 172 cm
Width
34.25 inches 86 cm
Height
37 inches 93 cm
Shipping weight
685 lbs 310 kg
Ground clearance
6 inches 15 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
42" Mower deck
Type
mid-mount Allis-Chalmers
3-blade with manual lift
Cutting width
42 inches 106 cm

Photos

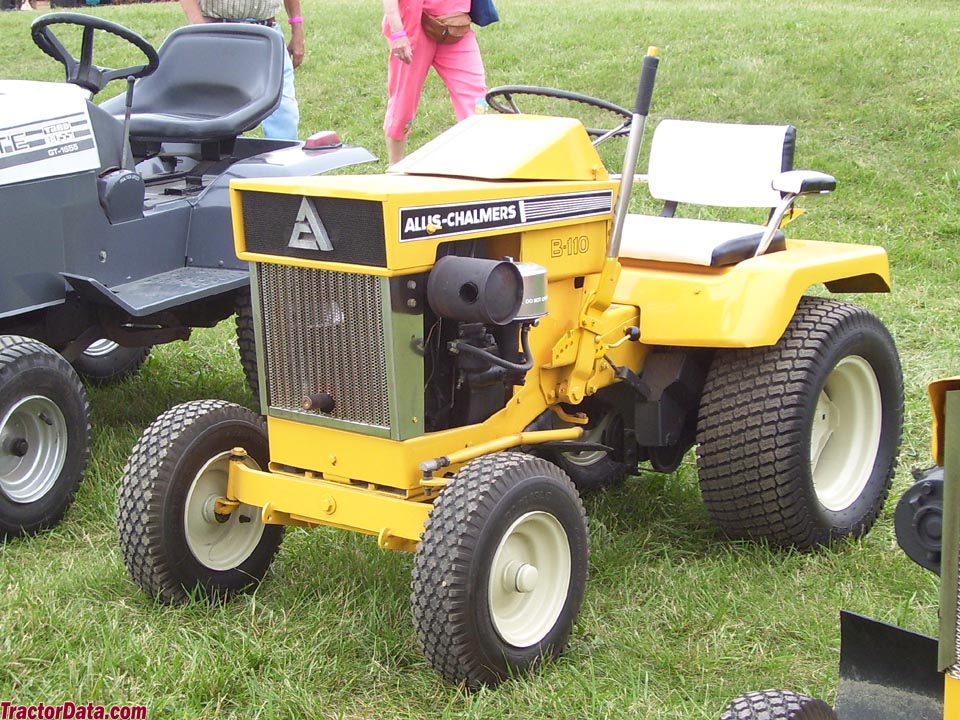

Allis-Chalmers B-110, left side.

Allis-Chalmers B-110, left side.

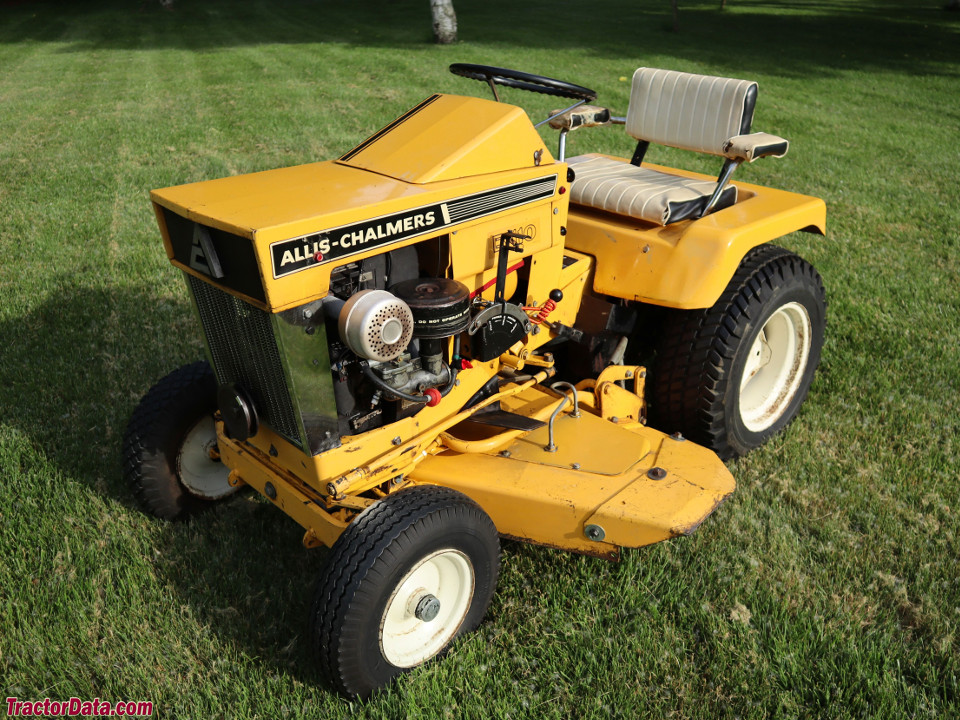

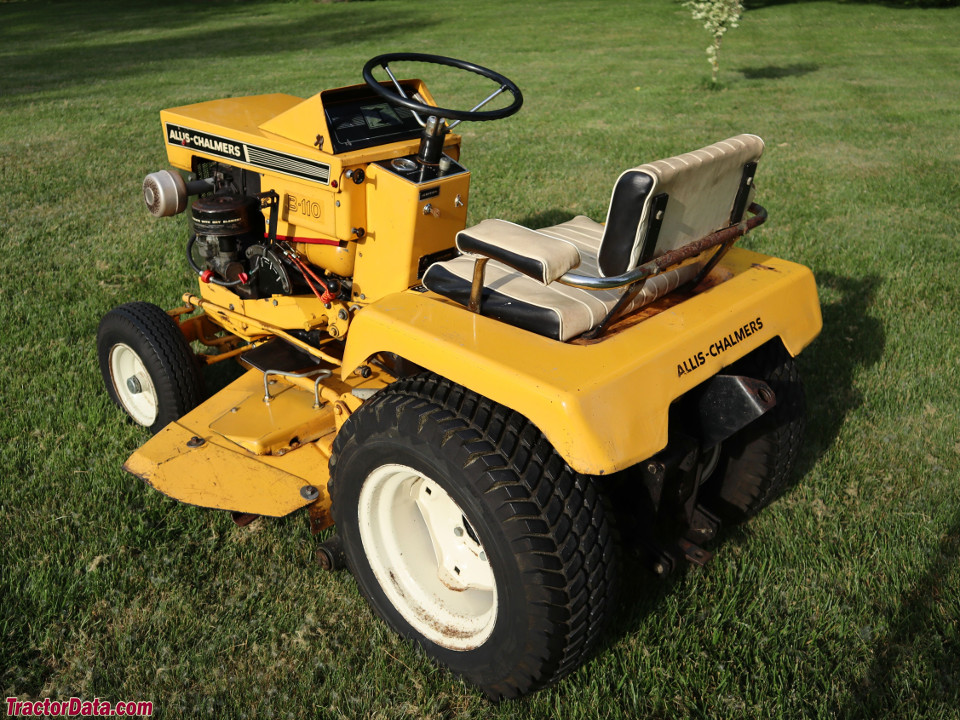

Allis-Chalmers B-110 with mower deck.

Allis-Chalmers B-110 with mower deck.

Allis-Chalmers B-110 with mower deck.

Allis-Chalmers B-110 with mower deck.
