Allis Chalmers B-210
The Allis Chalmers B-210 is a tractor produced by Allis Chalmers Lawn Tractors. It is equipped with a 393 cc 24 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: Vari-Shift. Operating weight: 745 lbs 337 kg.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
1.5 gal
5.7 L
Transmission
Vari-Shift
Operating Weight
745 lbs
337 kg
Overview
 | 1970 - 1972
B SeriesGarden tractor
B Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Garden tractor | |
Built in Lexington, South Carolina, USA | |
Allis Chalmers B-210 Engine | |
|---|---|
10HP Briggs & Stratton 393cc 1-cyl gasoline | |
Fuel tank | 1.5 gal
5.7 L |
Engine details ...  | |
Allis Chalmers B-210 Transmission | |
|---|---|
21-speed variator | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Mid PTO | live |
Front PTO | live |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 745 lbs
337 kg |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Service Manual B Series Tractors (9003453) published in 1976 |
Engine
Engine Detail — 393 cc / 24 ci Gasoline
Manufacturer | Briggs & Stratton 243431 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 393 cc
24 ci |
Bore/Stroke | 3.0625x3.25 inches
78 x 83 mm |
Power | 10 hp
7.5 kW |
Air cleaner | oiled foam |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Vari-Shift
Transmission | Vari-Shift |
Type | belt-driven variator |
Gears | 21 forward and 7 reverse |
Oil capacity | 1.5 qts
1.4 L |
Three gears, plus reverse, with seven-position variator. | |
 | |

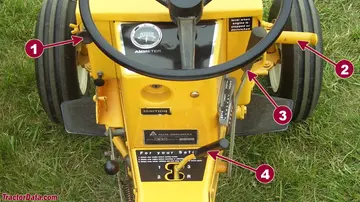

B-210 Transmission Controls | |
|---|---|
 | |
1 | Throttle |
2 | Clutch/brake |
3 | Variator |
4 | Gear shift |
Dimensions
Allis Chalmers B-210 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 72 inches
182 cm |
Width | 34 inches
86 cm |
Height | 37.75 inches
95 cm |
Weight | 745 lbs
337 kg |
Clearance (front axle) | 5.25 inches
13 cm |
Front tread | 25.5 inches
64 cm |
Rear tread | 30.25 to 30.28 inches
76 to 76 cm |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Allis Chalmers |
3-blade | |
Cutting width | 42 inches
106 cm |
Photos

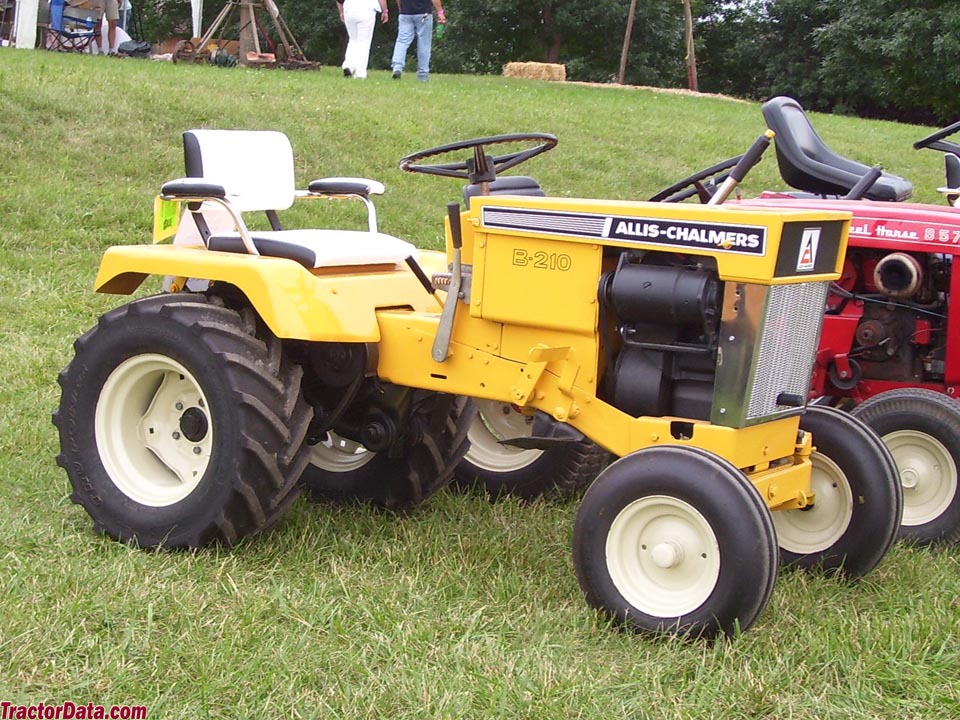

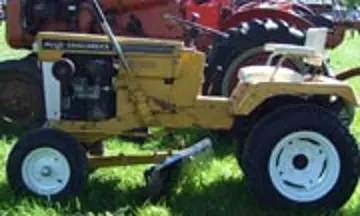

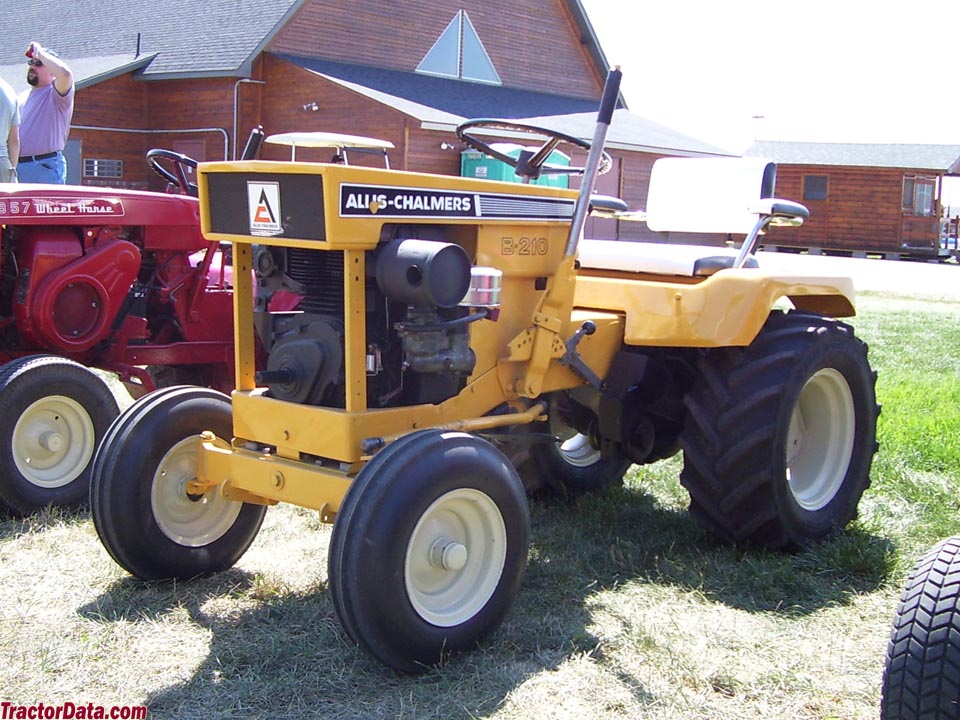

Allis Chalmers B-210
Allis Chalmers B-210
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Allis Chalmers Lawn Tractors Allis Chalmers B-210.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Allis Chalmers Lawn Tractors Allis Chalmers B-210 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Allis Chalmers Lawn Tractors Allis Chalmers B-210.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
