Amigo 1170
The Amigo 1170 is a tractor produced by Amigo Lawn Tractors. The listed engine power is Gasoline (gross): 8 hp / 6.0 kW. Transmission: Amigo-Matic.
Engine Power
Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
Amigo-Matic
Overview
 | 1964
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Amigo |
Garden tractor | |
Built in Dowagiac, Michigan, USA | |
Amigo 1170 Engine | |
|---|---|
8HP Kohler 1-cyl gasoline | |
Engine details ...  |
Amigo 1170 Transmission | |
|---|---|
4-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 4.00x8-16 |
Rear tire | 6.00x12-22 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Kohler K-181 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 8 hp
6.0 kW |
Starter volts | 12 |
Transmission
Transmission — Amigo-Matic
Transmission | Amigo-Matic |
Gears | 4 forward and 2 reverse |
Dimensions
Amigo 1170 Tires | |
|---|---|
Lawn/turf front | 4.00x8-16 |
Lawn/turf rear | 6.00x12-22 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 62 inches
157 cm |
Height (steering wheel) | 37 inches
93 cm |
Height (hood) | 32 inches
81 cm |
Clearance (front axle) | 10 inches
25 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
36" Mower deck | |
|---|---|
Type | mid-mount Amigo DC-36-5 |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

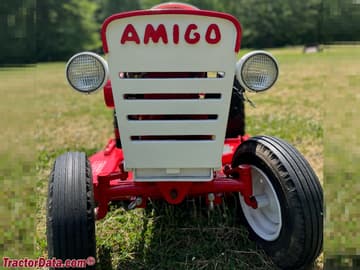

Amigo 1170

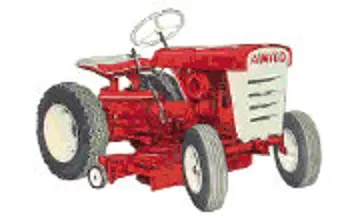

Amigo 1170
Amigo 1170
Amigo 1170 operator station.
Amigo Lawn Tractors Amigo 1170 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Amigo Lawn Tractors Amigo 1170.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
