Amigo 1200
The Amigo 1200 is a tractor produced by Amigo Lawn Tractors. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW; Gasoline (gross): 8 hp / 6.0 kW. Transmission: Amigo-Matic.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW; Gasoline (gross): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
Amigo-Matic
Overview
 | 1965 - 1966
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Amigo |
Garden tractor | |
Built in Dowagiac, Michigan, USA | |
Amigo 1200 Transmission | |
|---|---|
4-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Front PTO | live |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Front tire | 4.00x8-16 |
Rear tire | 6.00x12-22 |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
7HP Kohler 1-cyl gasoline | |
8HP Kohler 1-cyl gasoline |
Engine Detail — Gasoline
Manufacturer | Kohler K-161 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 7 hp
5.2 kW |
Rated RPM | 3600 |
Engine Detail — Gasoline
Manufacturer | Kohler K-181 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 8 hp
6.0 kW |
Rated RPM | 3600 |
Transmission
Transmission — Amigo-Matic
Transmission | Amigo-Matic |
Gears | 4 forward and 2 reverse |
Dimensions
Amigo 1200 Tires | |
|---|---|
Lawn/turf front | 4.00x8-16 |
Lawn/turf rear | 6.00x12-22 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 62 inches
157 cm |
Width | 32 inches
81 cm |
Height | 39 inches
99 cm |
Ground clearance | 10 inches
25 cm |
Photos

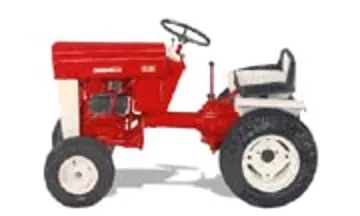

Amigo 1200 tractor photo
