Amigo 99

The Amigo 99 is a tractor produced by Amigo Lawn Tractors. It is equipped with a 266 cc 16.23 ci engine. The listed engine power is Gasoline (listed): 6.5 hp / 4.8 kW. Transmission: Amigo-Matic.

Overview

	1963 - 1964 Garden tractor

Production
Manufacturer	Amigo
Garden tractor
Built in Dowagiac, Michigan, USA

Amigo 99 Engine
6.5HP Kohler 266cc 1-cyl gasoline
Engine details ...

Amigo 99 Transmission
4-speed
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Rear PTO	live
Front PTO	live

Dimensions & Tires
Wheelbase	44 inches 111 cm
Front tire	4.00x8-16
Rear tire	6.00x12-22
Full dimensions and tires ...

Engine

Engine Detail — 266 cc / 16.23 ci Gasoline

Manufacturer	Kohler K-141
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	266 cc 16.23 ci
Bore/Stroke	2.875x2.5 inches 73 x 64 mm
Power	6.5 hp 4.8 kW

Transmission

Transmission — Amigo-Matic

Transmission	Amigo-Matic
Gears	4 forward and 2 reverse

Dimensions

Amigo 99 Tires
Lawn/turf front	4.00x8-16
Lawn/turf rear	6.00x12-22

Dimensions
Wheelbase	44 inches 111 cm
Length	62 inches 157 cm
Width	32 inches 81 cm
Height	39 inches 99 cm
Ground clearance	10 inches 25 cm

Attachments

36" Mower deck
Type	mid-mount Amigo
	2-blade
Cutting width	36 inches 91 cm

Photos

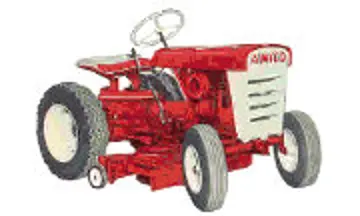

Amigo 99 tractor photo
