Amigo 77
The Amigo 77 is a tractor produced by Amigo Lawn Tractors. The listed engine power is Gasoline (gross): 5.5 hp / 4.1 kW. Transmission: Amigo-Matic. Operating weight: 450 lbs 204 kg.
Engine Power
Gasoline (gross): 5.5 hp / 4.1 kW
Fuel & Capacities
Gasoline
Transmission
Amigo-Matic
Operating Weight
450 lbs
204 kg
Overview
 | 1960 - 1963
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Amigo |
Garden tractor | |
Built in Dowagiac, Michigan, USA | |
Original price was $495 in 1960 | |
Amigo 77 Engine | |
|---|---|
5.5HP Lauson 1-cyl gasoline | |
Engine details ...  |
Amigo 77 Transmission | |
|---|---|
4-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 450 lbs
204 kg |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Lauson |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 5.5 hp
4.1 kW |
Transmission
Transmission — Amigo-Matic
Transmission | Amigo-Matic |
Gears | 4 forward and 2 reverse |
Dimensions
Amigo 77 Tires |
|---|
Dimensions | |
|---|---|
Weight | 450 lbs
204 kg |
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Amigo |
2-blade | |
Cutting width | 36 inches
91 cm |
Photos

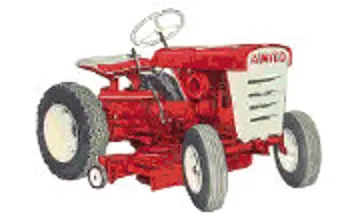

Amigo 77 tractor photo
Amigo Lawn Tractors Amigo 77 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Amigo Lawn Tractors Amigo 77.
Converted Equivalents:
Horsepower (HP)5.5 hp
Kilowatts (kW)4.1 kW
Metric Horsepower (PS / CV)5.6 PS
