Belarus 1005
The Belarus 1005 is a tractor produced by Belarus. It is equipped with a 289.8 ci 4.7 L engine. The rated power output is 100 hp 74.6 kW. Transmission: 18 forward and 4 reverse. Operating weight: 8874 lbs 4025 kg.
Engine Power
100 hp
74.6 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
18 forward and 4 reverse
Operating Weight
8874 lbs
4025 kg
Belarus 1005 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1996
1000 SeriesRow-Crop tractor |
|---|---|
1995 - 1996 | |
1000 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Belarus |
Row-Crop tractor | |
Built in Minsk, Belarus | |
Variants | |
|---|---|
1005 | 2WD |
1025 | 4WD |
Belarus 1005 Engine | |
|---|---|
Belarus 4.7L 4-cyl diesel | |
Engine details ...  |
Belarus 1005 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Belarus 1005 Power | |
|---|---|
Engine | 100 hp
74.6 kW |
PTO (claimed) | 92 hp
68.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Differential lock | hydraulic |
Power steering | |
Mechanical disc brakes | |
Cab standard. | |
Capacity | |
|---|---|
Fuel | 34.3 gal
129.8 L |
Hydraulic system | 5.4 gal
20.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.4 gal
20.4 L |
Pressure | 2250 psi
155.1 bar |
Valves | 2 or 3 |
Pump flow | 11.9 gpm
45.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 4366 lbs
1980 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1632 |
1000@1673 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 98.4 inches
249 cm |
Weight | 8874 lbs
4025 kg |
Front tire | 9.50x20 |
Rear tire | 16.9x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 50 |
Battery volts | 12 |
References | |
|---|---|
 | |
1005 - 1025 published by Belarus |
Engine
Engine Detail — 289.8 ci / 4.7 L Diesel
Manufacturer | Belarus |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 289.8 ci
4.7 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 100 hp
74.6 kW |
Fuel system | direct injection |
Air cleaner | oil bath |
Compression | 16:1 |
Rated RPM | 1800 |
Starter | electric |
Starter volts | 24 |
Oil capacity | 15.8 qts
15.0 L |
Coolant capacity | 21.1 qts
20.0 L |
Transmission

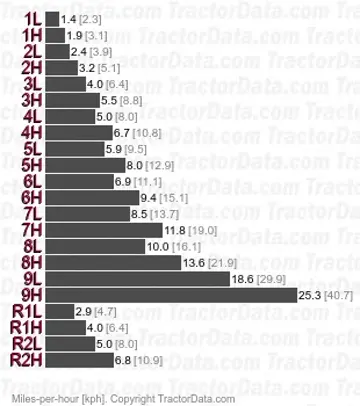

Transmission — 18 forward and 4 reverse
Gears | 18 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 42.2 qts
39.9 L |
With 16.9-38 rear tires. | |
 | |
Dimensions
Belarus 1005 Tires | |
|---|---|
Standard tires (ag) | Front: 9.50x20. Rear: 16.9x38 |
Dimensions | |
|---|---|
Wheelbase | 98.4 inches
249 cm |
Length | 163.2 inches
414 cm |
Width | 78 inches
198 cm |
Height | 113 inches
287 cm |
Shipping weight | 8874 lbs
4025 kg |
Clearance (front axle) | 25.4 inches
64 cm |
Clearance (rear axle) | 18.3 inches
46 cm |
Front tread | 57.1 to 72.8 inches
145 to 184 cm |
Rear tread | 57.5 to 82.7 inches
146 to 210 cm |
