Belarus 1025
The Belarus 1025 is a tractor produced by Belarus. It is equipped with a 289.8 ci 4.7 L engine. The rated power output is 100 hp 74.6 kW. Transmission: 18 forward and 4 reverse. Operating weight: 9144 lbs 4147 kg.
Engine Power
100 hp
74.6 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
18 forward and 4 reverse
Operating Weight
9144 lbs
4147 kg
Belarus 1025 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1996
1000 SeriesRow-Crop tractor |
|---|---|
1995 - 1996 | |
1000 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Belarus |
Row-Crop tractor | |
Built in Minsk, Belarus | |
Original price was $26,000 in 1996 | |
Variants | |
|---|---|
1005 | 2WD |
1025 | 4WD |
Belarus 1025 Engine | |
|---|---|
Belarus 4.7L 4-cyl diesel | |
Engine details ...  |
Belarus 1025 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Belarus 1025 Power | |
|---|---|
Engine | 100 hp
74.6 kW |
PTO (claimed) | 92 hp
68.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | spur gear |
Differential lock | hydraulic |
Power steering | |
Mechanical disc brakes | |
Cab standard. | |
Capacity | |
|---|---|
Fuel | 34.3 gal
129.8 L |
Hydraulic system | 5.4 gal
20.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.4 gal
20.4 L |
Pressure | 2250 psi
155.1 bar |
Valves | 2 or 3 |
Pump flow | 11.9 gpm
45.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift (at ends) | 4366 lbs
1980 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1632 |
1000@1673 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 101.2 inches
257 cm |
Weight | 9144 lbs
4147 kg |
Front tire | 13.6x20 |
Rear tire | 16.9x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 50 |
Battery volts | 12 |
References | |
|---|---|
 | |
1005 - 1025 published by Belarus | |
1025 published in 1996, by Belarus |
Engine
Engine Detail — 289.8 ci / 4.7 L Diesel
Manufacturer | Belarus |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 289.8 ci
4.7 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 100 hp
74.6 kW |
Fuel system | direct injection |
Air cleaner | oil bath |
Compression | 16:1 |
Rated RPM | 1800 |
Starter | electric |
Starter volts | 24 |
Oil capacity | 15.8 qts
15.0 L |
Coolant capacity | 21.1 qts
20.0 L |
Transmission

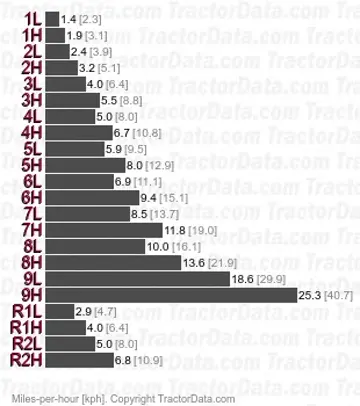

Transmission — 18 forward and 4 reverse
Gears | 18 forward and 4 reverse |
Clutch | dry disc |
Oil capacity | 42.2 qts
39.9 L |
With 16.9-38 rear tires. | |
 | |
Dimensions
Belarus 1025 Tires | |
|---|---|
Standard tires (ag) | Front: 13.6x20. Rear: 16.9x38 |
Dimensions | |
|---|---|
Wheelbase | 101.2 inches
257 cm |
Length | 166 inches
421 cm |
Width | 78 inches
198 cm |
Height | 113 inches
287 cm |
Shipping weight | 9144 lbs
4147 kg |
Clearance (front axle) | 25.4 inches
64 cm |
Clearance (rear axle) | 18.3 inches
46 cm |
Front tread | 47 to 71 inches
119 to 180 cm |
Rear tread | 47 to 71 inches
119 to 180 cm |
Photos

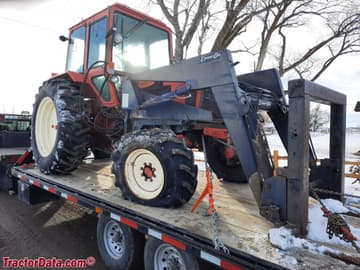

Belarus 1025
Belarus 1025
