Belarus 1052
The Belarus 1052 is a tractor produced by Belarus. It is equipped with a 289.8 ci 4.7 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 18 forward and 4 reverse. Operating weight: 7209 lbs 3270 kg.
Engine Power
105 hp
78.3 kW
Fuel & Capacities
34.3 gal
129.8 L
Transmission
18 forward and 4 reverse
Operating Weight
7209 lbs
3270 kg
Belarus 1052 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1986 - ????
Utility tractor |
|---|---|
1986 - ???? | |
Utility tractor | |
1986 - ???? | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Belarus |
Utility tractor | |
Belarus 1052 Engine | |
|---|---|
Belarus 4.7L 4-cyl diesel | |
Engine details ...  |
Belarus 1052 Transmission | |
|---|---|
18-speed gear | |
Transmission details ...  |
Belarus 1052 Power | |
|---|---|
Engine | 105 hp
78.3 kW |
PTO (claimed) | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Mechanical dry disc brakes | |
Cab standard with optional air-conditioning. |
Capacity | |
|---|---|
Fuel | 34.3 gal
129.8 L |
Hydraulic system | 5.4 gal
20.4 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 5.4 gal
20.4 L |
Pressure | 2274 psi
156.8 bar |
Valves | 3 |
Pump flow | 9.9 gpm
37.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 4409 lbs
1999 kg |
Rear lift (at 24"/610mm) | 1764 lbs
800 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Engine RPM | 540@2100 |
1000@2100 | |
Dimensions & Tires | |
|---|---|
Weight | 7209 lbs
3270 kg |
Front tire | 7.5x20 |
Rear tire | 15.5x38 |
Full dimensions and tires ...  | |
Engine
| 1986 - ????
Utility tractor |
|---|---|
1986 - ???? | |
Utility tractor | |
1986 - ???? | |
|---|---|
Utility tractor |
Engine Detail — 289.8 ci / 4.7 L Diesel
Manufacturer | Belarus D240 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 289.8 ci
4.7 L |
Bore/Stroke | 4.33x4.92 inches
110 x 125 mm |
Power | 105 hp
78.3 kW |
Compression | 16:1 |
Rated RPM | 2200 |
Idle RPM | 600-2400 |
Torque | 274.8 lb-ft
372.6 Nm |
Torque RPM | 1250 |
Transmission
| 1986 - ????
Utility tractor |
|---|---|
1986 - ???? | |
Utility tractor | |
1986 - ???? | |
|---|---|
Utility tractor |

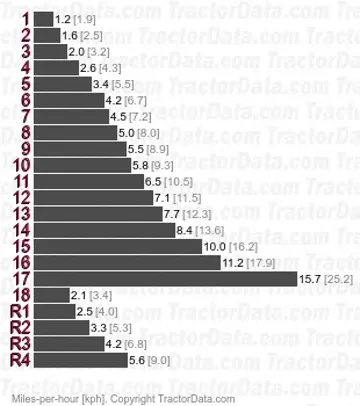

Transmission — 18 forward and 4 reverse gear
Type | gear |
Gears | 18 forward and 4 reverse |
With 15.5x38 rear tires. | |
 | |
Dimensions
| 1986 - ????
Utility tractor |
|---|---|
1986 - ???? | |
Utility tractor | |
1986 - ???? | |
|---|---|
Utility tractor |
Belarus 1052 Tires | |
|---|---|
Ag front | 7.5x20 |
Ag rear | 15.5x38 |
Dimensions | |
|---|---|
Length | 151.6 inches
385 cm |
Width | 77.6 inches
197 cm |
Height (cab) | 114.2 inches
290 cm |
Weight | 7209 lbs
3270 kg |
Ground clearance | 24.8 inches
62 cm |
Front tread | 47.2 to 70.9 inches
119 to 180 cm |
Rear tread | 53.2 to 72.8 inches
135 to 184 cm |

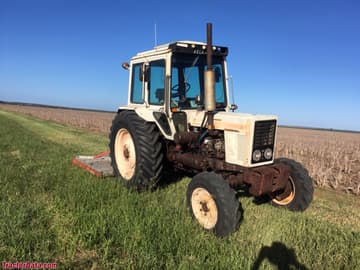

Photos
Belarus 1052
