Bolinder-Munktell BM-10

The Bolinder-Munktell BM-10 is a tractor produced by Bolinder Munktell. It is equipped with a 166 ci 2.7 L engine. The rated power output is 20 hp 14.9 kW. Transmission: 5 forward and 1 reverse. Operating weight: 2866 lbs 1300 kg.

Overview

	1947 - 1952 Standard-tread tractor
1947 - 1952
Standard-tread tractor

Production
Manufacturer	Bolinder-Munktell
Standard-tread tractor
Built in Eskilstuna, Sweden

Bolinder-Munktell BM-10 Engine
Bolinder 2.7L 2-cyl diesel
Fuel tank	9.3 gal 35.2 L
Engine details ...

Bolinder-Munktell BM-10 Transmission
5-speed gear
Transmission details ...

Bolinder-Munktell BM-10 Power
Engine	20 hp 14.9 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Rear PTO	540 (1.375)

Dimensions & Tires
Wheelbase	65 inches 165 cm
Weight	2866 lbs 1300 kg
Front tire	5.50x16
Rear tire	10x28
Full dimensions and tires ...

Electrical
Charging system	generator
Batteries	2
Battery volts	6

References
Lilla Traktor BM-10 published by Bolinder-Munktell

Engine

Engine Detail — 166 ci / 2.7 L Diesel

Manufacturer	Bolinder W3
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled
Displacement	166 ci 2.7 L
Bore/Stroke	4.72x4.72 inches 120 x 120 mm
Power	20 hp 14.9 kW
Rated RPM	1200
Starter	electric
Starter volts	12
Oil capacity	5.3 qts 5.0 L
Coolant capacity	9.5 qts 9.0 L

Transmission

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse

Dimensions

Bolinder-Munktell BM-10 Tires
Ag front	5.50x16
Ag rear	10x28

Dimensions
Wheelbase	65 inches 165 cm
Length	103.2 inches 262 cm
Width	65.4 inches 166 cm
Height (steering wheel)	63.4 inches 161 cm
Height (hood)	56.1 inches 142 cm
Weight	2866 lbs 1300 kg
Ground clearance	15.8 inches 40 cm
Front tread	47.2/54 inches 119/137 cm
Rear tread	47.2/51.2/55.1/59.1 inches 119/130/139/150 cm

Photos

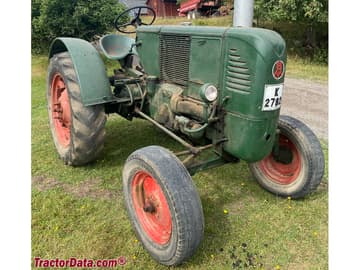

Bolinder-Munktell BM-10

Bolinder-Munktell BM-10
