Branson 2400

The Branson 2400 is a tractor produced by Branson. It is equipped with a 71.7 ci 1.2 L engine. The listed engine power is Diesel (gross): 24 hp / 17.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1958 to 2023 pounds.

Overview

	2007 - ???? Compact Utility tractor
2007 - ????
Compact Utility tractor

2007 - ????
Compact Utility tractor

Production
Manufacturer	Branson (a part of Kukje)
Compact Utility tractor
Built in Yangsu-ri, South Korea

Variants
2400h	hydrostatic transmission

Branson 2400 Engine
Kukje 1.2L 3-cyl diesel
Fuel tank	6.07 gal 23.0 L
Engine details ...

Branson 2400 Power
Engine (gross)	24 hp 17.9 kW
PTO (claimed)	22 hp 16.4 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Pump flow	4.8 gpm 18.2 lpm
Total flow	8.2 gpm 31.0 lpm
Steering flow	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540/960
Mid PTO Type	2500

Dimensions & Tires
Wheelbase	59.1 inches 150 cm
Weight	1958 to 2023 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

	2007 - ???? Compact Utility tractor
2007 - ????
Compact Utility tractor

2007 - ????
Compact Utility tractor

Engine Detail — 71.7 ci / 1.2 L Diesel

Manufacturer	Kukje A1100N2
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	71.7 ci 1.2 L
Bore/Stroke	3.07x3.23 inches 78 x 82 mm
Power (gross)	24 hp 17.9 kW
Air cleaner	dry element
Rated RPM	2600
Starter type	electric

Transmission

	2007 - ???? Compact Utility tractor
2007 - ????
Compact Utility tractor

2007 - ????
Compact Utility tractor

Transmission options
6-speed gear
hydrostatic

Transmission — 6 forward and 2 reverse gear

Type	gear
Gears	6 forward and 2 reverse

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

	2007 - ???? Compact Utility tractor
2007 - ????
Compact Utility tractor

2007 - ????
Compact Utility tractor

Branson 2400 Tires
Industrial front	12x8.5-12
Industrial rear	12-16.5

Dimensions
Wheelbase	59.1 inches 150 cm
Length	119.3 inches 303 cm
Width	44.3 inches 112 cm
Height (ROPS)	87.2 inches 221 cm
Gear Weight	1958 lbs 888 kg
Hydro Weight	2023 lbs 917 kg
Ground clearance	13.7 inches 34 cm
Front tread	33.6 inches 85 cm
Rear tread	34.6 inches 87 cm

Attachments

	2007 - ???? Compact Utility tractor
2007 - ????
Compact Utility tractor

2007 - ????
Compact Utility tractor

Photos

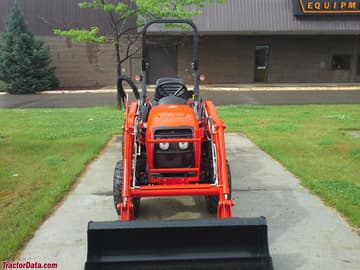

Branson 2400h with SL00 front-end loader.

Branson 2400h with SL00 front-end loader.

Branson 2400h with SL00 front-end loader.

Branson 2400h with SL00 front-end loader.

Branson 2400h operator station and controls.
