Branson 2515

The Branson 2515 is a tractor produced by Branson. It is equipped with a 104.6 ci 1.7 L engine. The listed engine power is Diesel (gross): 24 hp / 17.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 2969 to 2989 pounds.

Engine Power
Diesel (gross): 24 hp / 17.9 kW
Fuel & Capacities
7.1 gal 26.9 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
2969 to 2989 pounds

Overview

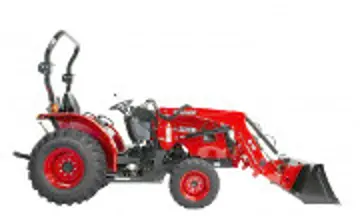

Branson 2515 tractor photo
2020 - 15 SeriesCompact Utility tractor
2020 -
15 Series
Compact Utility tractor
Production
Manufacturer
Branson (a part of TYM)
Compact Utility tractor
Variants
2515H
hydrostatic
2515R
shuttle
Branson 2515 Engine
Kukje 1.7L 3-cyl diesel
Fuel tank
7.1 gal 26.9 L
Engine details ...
Branson 2515 Power
Engine (gross)
24 hp 17.9 kW
PTO (claimed)
21 hp 15.7 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.
Hydraulics
Pump flow
7.5 gpm 28.4 lpm
Total flow
11.5 gpm 43.5 lpm
Steering flow
4 gpm 15.1 lpm
Tractor hitch
Rear Type
I
Control
position control
Rear lift (at ends)
3306 lbs 1499 kg
Rear lift (at 24"/610mm)
2425 lbs 1099 kg
Power Take-off (PTO)
Rear PTO
independent
Clutch
wet disc
Rear PTO Type
540 (1.375)
Dimensions & Tires
Wheelbase
65.7 inches 166 cm
Weight
2969 to 2989 pounds
Front tire
8-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
50
Battery volts
12

Engine

Engine Detail — 104.6 ci / 1.7 L Diesel

Manufacturer
Kukje A1700N6
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
104.6 ci 1.7 L
Bore/Stroke
3.46x3.70 inches 88 x 94 mm
Emissions
Tier IV
Power (gross)
24 hp 17.9 kW
Fuel system
indirect injection
Air cleaner
dry
Rated RPM
2100
Starter
electric
Starter volts
12

Transmission

Transmission options
12-speed sync shuttle
hydrostatic

Transmission — 12 forward and reverse sync shuttle

Type
sync shuttle
Gears
12 forward and reverse
Clutch
dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (3-range)

Dimensions

Branson 2515 Tires
Ag front
8-16
Ag rear
12.4-24
Industrial front
28x8.50-15
Industrial rear
43x16.00-20
Dimensions
Wheelbase
65.7 inches 166 cm
Length
120.9 inches 307 cm
Width
56.3 inches 143 cm
Height (ROPS)
104 inches 264 cm
Height (Folded ROPS)
60 inches 152 cm
Gear Weight
2989 lbs 1355 kg
Hydro Weight
2969 lbs 1346 kg
Ground clearance
14.4 inches 36 cm

Attachments

Attachment overview
Front-end loader
Backhoe
Branson BH150 Backhoe
Backhoe type
Branson BH150 Backhoe
Transport height
83.5 inches 212 cm
Bucket width
16 inches 40 cm
Digging depth
92 inches 233 cm
Reach from pivot
123.4 inches 313 cm
Bucket Rotation
149°
Swing Arc
180°
Bucket force
4380 lbs 1986 kg

Photos

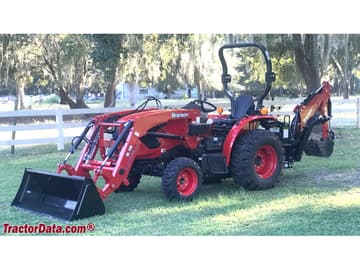

Branson 2515

Branson 2515

Branson 2515H.

Branson 2515H.

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 2515 based on its 24 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 2515.

Estimated Continuous Field Runtime: 5.7 hrs

Approximately 5.7 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 2515 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 2515.

Converted Equivalents:

Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
