Branson 2800

The Branson 2800 is a tractor produced by Branson. It is equipped with a 67.1 ci 1.1 L engine. The listed engine power is Diesel (gross): 28 hp / 20.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 2,023 lbs (gear) 917 kg.

Engine Power
Diesel (gross): 28 hp / 20.9 kW
Fuel & Capacities
6.07 gal 23.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
2,023 lbs (gear) 917 kg

Overview

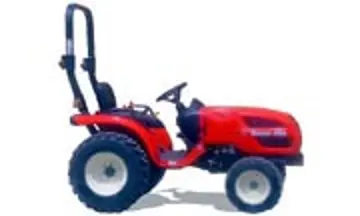

Branson 2800 tractor photo
2007 - ???? Kukje built
2007 - ????
Kukje built
2007 - ????
Kukje built
Production
Distributor
Branson
Manufacturer
Kukje
Built in Yangsu-ri, South Korea
Variants
2800h
hydrostatic transmission
Branson 2800 Engine
1.1L 3-cyl diesel
Fuel tank
6.07 gal 23.0 L
Engine details ...
Branson 2800 Power
Engine (gross)
28 hp 20.9 kW
PTO (claimed)
25 hp 18.6 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
ROPS.
Hydraulics
Total flow
8.3 gpm 31.4 lpm
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO Type
540/960
Mid PTO Type
2500
Dimensions & Tires
Wheelbase
59.1 inches 150 cm
Weight
2023 lbs 917 kg
Full dimensions and tires ...

Engine

Branson 2800 tractor photo
2007 - ???? Kukje built
2007 - ????
Kukje built
2007 - ????
Kukje built

Engine Detail — 67.1 ci / 1.1 L Diesel

Configuration
turbocharged diesel, 3-cylinder, liquid-cooled
Displacement
67.1 ci 1.1 L
Power (gross)
28 hp 20.9 kW
Air cleaner
dry element
Rated RPM
2600
Starter type
electric

Transmission

Branson 2800 tractor photo
2007 - ???? Kukje built
2007 - ????
Kukje built
2007 - ????
Kukje built
Transmission options
6-speed gear
hydrostatic

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)

Dimensions

Branson 2800 tractor photo
2007 - ???? Kukje built
2007 - ????
Kukje built
2007 - ????
Kukje built
Branson 2800 Tires
Industrial front
12x8.5-12
Industrial rear
12-16.5
Dimensions
Wheelbase
59.1 inches 150 cm
Length
119.3 inches 303 cm
Width
44.3 inches 112 cm
Height (ROPS)
87.2 inches 221 cm
Weight
2,023 lbs (gear) 917 kg
2,023 lbs (2800h) 917 kg
Ground clearance
13.7 inches 34 cm
Front tread
33.6 inches 85 cm
Rear tread
34.6 inches 87 cm

Photos

Branson 2800 tractor photo

Branson 2800 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 2800 based on its 28 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 2800.

Estimated Continuous Field Runtime: 4.2 hrs

Approximately 4.2 hours of continuous field operation at ~75% rated power on a full tank (6.1 gal / 23 L).

Estimated 75% Load Fuel Burn~1.5 gal/hr (5.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 2800 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 2800.

Converted Equivalents:

Horsepower (HP)28 hp
Kilowatts (kW)20.9 kW
Metric Horsepower (PS / CV)28.4 PS

Direct Competitor Comparison

Compare Branson 2800 against same-era industry alternatives in the same horsepower class.

Current Model
Branson

Branson 2800

Engine Power:Diesel (gross): 28 hp / 20.9 kW
★ Baseline Reference
DeereMarket Competitor

Deere 1026R

Engine Power:25.2
Production Years:2011 - 2012
KubotaMarket Competitor

Kubota B2601

Engine Power:25.5
Production Years:2018 - 2026
FordMarket Competitor

Ford 1600

Engine Power:25.6
Production Years:1976 - 1979
ZetorMarket Competitor

Zetor M25

Engine Power:25.3
Production Years:2020 - 2026
