Branson 2505h

The Branson 2505h is a tractor produced by Branson. It is equipped with a 77.3 ci 1.3 L engine. The rated power output is 24.6 hp 18.3 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 272 lbs 123 kg.

Overview

	2020 - 05 SeriesCompact Utility tractor
2020 -
05 Series
Compact Utility tractor

Production
Manufacturer	Branson (a part of Kukje)
Compact Utility tractor
Built in South Korea

Branson 2505h Engine
Yanmar 1.3L 3-cyl diesel
Fuel tank	5.8 gal 22.0 L
Engine details ...

Branson 2505h Transmission
hydrostatic
Transmission details ...

Branson 2505h Power
Engine (gross)	24.6 hp 18.3 kW
PTO (claimed)	18.8 hp 14.0 kW

Mechanical
Four-wheel drive
Differential lock	mechnanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Rear valves	2 OptOptional
Pump flow	4.2 gpm 15.9 lpm
Total flow	7.0 gpm 26.5 lpm
Steering flow	2.8 gpm 10.6 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	1214 lbs 550 kg
Rear lift (at 24"/610mm)	1101 lbs 499 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	57.5 inches 146 cm
Weight	1638 lbs 742 kg
Front tire	6-12
Rear tire	9.5-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12

References
05 Series - 2505h published in 2019, by Branson

Engine

Engine Detail — 77.3 ci / 1.3 L Diesel

Manufacturer	Yanmar 3TNV80F
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled inline
Displacement	77.3 ci 1.3 L
Bore/Stroke	3.15x3.31 inches 80 x 84 mm
Emissions	Tier IV
Power (gross)	24.6 hp 18.3 kW
Fuel system	indirect injection
Rated RPM	3000

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

Branson 2505h Tires
Standard tires (ag)	Front: 6-12. Rear: 9.5-16
Lawn/turf front	20x8.00-10
Lawn/turf rear	29x12.5-15
Industrial front	23x8.50-12
Industrial rear	12-16.5

Dimensions
Wheelbase	57.5 inches 146 cm
Length	100.5 inches 255 cm
Width	45.8 inches 116 cm
Height (ROPS)	91.3 inches 231 cm
Weight	1638 lbs 742 kg
Ground clearance	9.5 inches 24 cm

Attachments

Attachment overview
60" mid-mount mower deck
Branson BL95S loader
Branson BL95SL loader
Backhoe

60" Mower deck
Type	mid-mount Branson BM60G
	3-blade
Cutting width	60 inches 152 cm
Weight	272 lbs 123 kg
Overall width	74.3 inches 188 cm
Cut height	1 to 4 inch 2 to 10 cm

Branson BH95 Backhoe
Backhoe type	Branson BH95 Backhoe
Transport height	70.5 inches 179 cm
2-Foot flat digging depth	76 inches 193 cm
Loading height	63.8 inches 162 cm
Bucket Rotation	180°
Swing Arc	150°

Photos

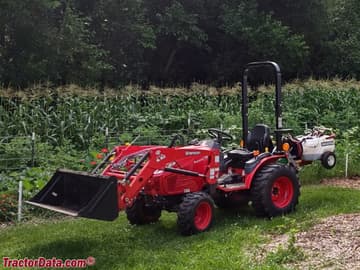

Branson 2505h
