Branson 2910i

The Branson 2910i is a tractor produced by Branson. It is equipped with a 89 ci 1.5 L engine. The listed engine power is Diesel (listed): 29 hp / 21.6 kW. Transmission: synchromesh. Operating weight: 3640 lbs 1651 kg.

Engine Power
Diesel (listed): 29 hp / 21.6 kW
Fuel & Capacities
10.6 gal 40.1 L
Transmission
synchromesh
Operating Weight
3640 lbs 1651 kg

Overview

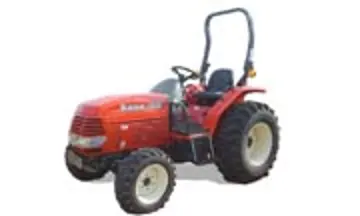

Branson 2910i tractor photo
2005 - 2009 Compact Utility tractor
Production
Manufacturer
Branson
Compact Utility tractor
Built in Yangsu-ri, South Korea
Branson 2910i Engine
Kukje 1.5L 3-cyl diesel
Engine details ...
Branson 2910i Transmission
12-speed
Transmission details ...
Branson 2910i Power
Engine
29 hp 21.6 kW
PTO (claimed)
25 hp 18.6 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Two-post ROPS.
Capacity
Fuel
10.6 gal 40.1 L
Hydraulic system
9.25 gal 35.0 L
Hydraulics
Type
open center
Capacity
9.25 gal 35.0 L
Valves
1 to 3
Pump flow
8.9 gpm 33.7 lpm
Total flow
13.2 gpm 50.0 lpm
Tractor hitch
Rear Type
I
Rear lift
2580 lbs 1170 kg
Power Take-off (PTO)
Rear PTO
live , independent optional (2-stage clutch)
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
65 inches 165 cm
Weight
3640 lbs 1651 kg
Front tire
7-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
45
Battery volts
12

Engine

Engine Detail — 89 ci / 1.5 L Diesel

Manufacturer
Kukje
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
89 ci 1.5 L
Bore/Stroke
3.307x3.465 inches 84 x 88 mm
Power
29 hp 21.6 kW
Compression
21.2:1
Rated RPM
2600
Starter volts
12
Oil capacity
3.17 qts 3.0 L

Transmission

Transmission — synchromesh

Transmission
synchromesh
Gears
12 forward and reverse
Oil capacity
37 qts 35.0 L

Dimensions

Branson 2910i Tires
Ag front
7-16
Ag rear
12.4-24
Lawn/turf front
27x8.50-15
Lawn/turf rear
41x14.00-20
Industrial front
27x8.50-15
Industrial rear
15x19.5
Industrial front
10-16.5
Industrial rear
420/70-24
Dimensions
Wheelbase
65 inches 165 cm
Length
120 inches 304 cm
Width
59 inches 149 cm
Height
95 inches 241 cm
Weight
3640 lbs 1651 kg
Ground clearance
11.2 inches 28 cm
Front tread
44.6 inches 113 cm
Rear tread
42.5 to 57.3 inches 107 to 145 cm

Photos

Mahindra 2910i tractor with BL10A front-end loader.

Mahindra 2910i tractor with BL10A front-end loader.

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 2910i based on its 29 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 2910i.

Estimated Continuous Field Runtime: 7 hrs

Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).

Estimated 75% Load Fuel Burn~1.5 gal/hr (5.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 2910i Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 2910i.

Converted Equivalents:

Horsepower (HP)29 hp
Kilowatts (kW)21.6 kW
Metric Horsepower (PS / CV)29.4 PS

Direct Competitor Comparison

Compare Branson 2910i against same-era industry alternatives in the same horsepower class.

Current Model
Branson

Branson 2910i

Engine Power:Diesel (listed): 29 hp / 21.6 kW
★ Baseline Reference
DeereMarket Competitor

Deere 4200

Engine Power:26.3
Production Years:1998 - 2001
FordMarket Competitor

Ford 2N

Engine Power:26.5
Production Years:1942 - 1947
KubotaMarket Competitor

Kubota L2250

Engine Power:26.5
Production Years:1985 - 1992
IsekiMarket Competitor

Iseki TH265

Engine Power:26.1
Production Years:2010 - 2016
