Branson 2810
The Branson 2810 is a tractor produced by Branson. It is equipped with a 89 ci 1.5 L engine. The listed engine power is Diesel (listed): 29 hp / 21.6 kW. Transmission: synchromesh. Operating weight: 3640 lbs 1651 kg.
Engine Power
Diesel (listed): 29 hp / 21.6 kW
Fuel & Capacities
10.6 gal
40.1 L
Transmission
synchromesh
Operating Weight
3640 lbs
1651 kg
Overview
![]() | 2002 - 2005
10 SeriesCompact Utility tractor
10 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Branson |
Compact Utility tractor | |
Built in Yangsu-ri, South Korea | |
Branson 2810 Engine | |
|---|---|
Kukje 1.5L 3-cyl diesel | |
Engine details ... |
Branson 2810 Transmission | |
|---|---|
12-speed | |
Transmission details ... |
Branson 2810 Power | |
|---|---|
Engine | 29 hp
21.6 kW |
PTO (claimed) | 25 hp
18.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post ROPS. | |
Capacity | |
|---|---|
Fuel | 10.6 gal
40.1 L |
Hydraulic system | 9.25 gal
35.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9.25 gal
35.0 L |
Valves | 1 (3 optional) |
Pump flow | 8.9 gpm
33.7 lpm |
Total flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift | 2580 lbs
1170 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live *2-stage clutch |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 65 inches
165 cm |
Weight | 3640 lbs
1651 kg |
Front tire | 7-16 |
Rear tire | 12.4-24 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 45 |
Battery volts | 12 |
Engine
Engine Detail — 89 ci / 1.5 L Diesel
Manufacturer | Kukje |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89 ci
1.5 L |
Bore/Stroke | 3.307x3.465 inches
84 x 88 mm |
Power | 29 hp
21.6 kW |
Compression | 21.2:1 |
Rated RPM | 2600 |
Starter volts | 12 |
Oil capacity | 6.4 qts
6.1 L |
Coolant capacity | 9.8 qts
9.3 L |
Transmission
Transmission — synchromesh
Transmission | synchromesh |
Gears | 12 forward and reverse |
Oil capacity | 37 qts
35.0 L |
Dimensions
Branson 2810 Tires | |
|---|---|
Ag front | 7-16 |
Ag rear | 12.4-24 |
Lawn/turf front | 27x8.50-15 |
Lawn/turf rear | 41x14.00-20 |
Industrial front | 27x8.50-15 |
Industrial rear | 15x19.5 |
Industrial front | 10-16.5 |
Industrial rear | 420/70-24 |
Dimensions | |
|---|---|
Wheelbase | 65 inches
165 cm |
Length | 120 inches
304 cm |
Width | 59 inches
149 cm |
Height | 95 inches
241 cm |
Weight | 3640 lbs
1651 kg |
Ground clearance | 11.2 inches
28 cm |

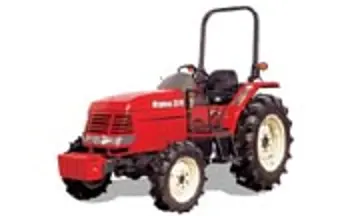

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Branson 2810 based on its 29 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 2810.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).
Estimated 75% Load Fuel Burn~1.5 gal/hr (5.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Branson 2810 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 2810.
Converted Equivalents:
Horsepower (HP)29 hp
Kilowatts (kW)21.6 kW
Metric Horsepower (PS / CV)29.4 PS
Direct Competitor Comparison
Compare Branson 2810 against same-era industry alternatives in the same horsepower class.
Current Model
Branson
Branson 2810
Engine Power:Diesel (listed): 29 hp / 21.6 kW
★ Baseline Reference
