Branson 3515CH

The Branson 3515CH is a tractor produced by Branson. It is equipped with a 139.5 ci 2.3 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3664 lbs 1661 kg.

Engine Power
Diesel (listed): 35 hp / 26.1 kW
Fuel & Capacities
7.1 gal 26.9 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
3664 lbs 1661 kg

Overview

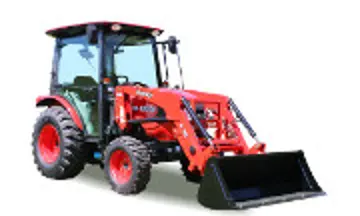

Branson 3515CH tractor photo
2021 - 2023 15 SeriesCompact Utility tractor 15 Series Compact Utility tractor
Production
Manufacturer
Branson (a part of TYM)
Compact Utility tractor
Variants
3515R
shuttle
3515H
hydrostatic
3515C
cab
Branson 3515CH Engine
Kukje 2.3L 4-cyl diesel
Fuel tank
7.1 gal 26.9 L
Engine details ...
Branson 3515CH Transmission
hydrostatic
Transmission details ...
Branson 3515CH Power
Engine
35 hp 26.1 kW
PTO (claimed)
30 hp 22.4 kW
Mechanical
Power steering
Cab standard with air-conditioning.
Hydraulics
Pump flow
11.1 gpm 42.0 lpm
Steering flow
5 gpm 18.9 lpm
Tractor hitch
Rear Type
I
Rear lift
3306 lbs 1499 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
Engine RPM
560@2600
Dimensions & Tires
Wheelbase
65.7 inches 166 cm
Weight
3664 lbs 1661 kg
Front tire
7-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
3515CH references literature
15 Series Cabs published in 2021, by Branson

Engine

Engine Detail — 139.5 ci / 2.3 L Diesel

Manufacturer
Kukje A2300NA
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
139.5 ci 2.3 L
Bore/Stroke
3.46x3.70 inches 88 x 94 mm
Emissions
Tier 4
Power
35 hp 26.1 kW
Air cleaner
dry
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse (3-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (3-range)

Dimensions

Branson 3515CH Tires
Standard tires (ag)
Front: 7-16. Rear: 12.4-24
Industrial front
28-8.50
Industrial rear
43x16-20
Dimensions
Wheelbase
65.7 inches 166 cm
Length
130 inches 330 cm
Width
55.6 inches 141 cm
Height (cab)
89.3 inches 226 cm
Weight
3664 lbs 1661 kg
Ground clearance
13.1 inches 33 cm

Photos

Branson 3515CH tractor photo

Branson 3515CH tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Branson 3515CH based on its 35 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Branson 3515CH.

Estimated Continuous Field Runtime: 3.9 hrs

Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).

Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Branson 3515CH Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Branson 3515CH.

Converted Equivalents:

Horsepower (HP)35 hp
Kilowatts (kW)26.1 kW
Metric Horsepower (PS / CV)35.5 PS
